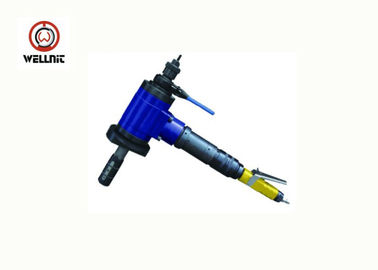

Penumatic Driven Steel Pipe Beveler Portable Chamfering Machine Portable Type

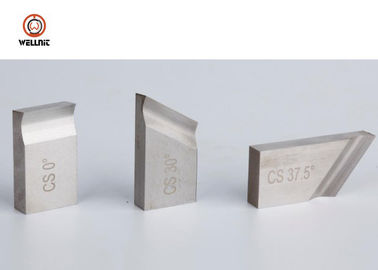

The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe. A draw nut is tightened, which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the material from the end, a bevel is produced which conforms to the angle predetermined by the angle ground into the bit. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.,with the following advantages:Easy operation, light weight and convenient to carry. The ID-Mounted pipe beveling machines use expanding mandrel to holding itself against on the internal surface of pipe via the open end of pipe.

This series is ID Mounted Welding Preparation Pipe Chamfering Tool with the following advantages:

• A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.

• Driveing Type:Electric-ISE,Pneumatic-ISP.

• Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.

• Angle:Beveling angle as per your required

Non-standard machines are available according to customers’requirement.
