Product Details:
Payment & Shipping Terms:
|
| Driven: | Hydraulic Driven | Wall Thickness: | ≤30mm |
|---|---|---|---|
| Material: | Steel | Shipping Weight: | 79 Kgs |
| Working Range: | 5"-10"(125-275mm) | Power Supply: | 2-60L Per Minute@12.5Mpa |
| Refrigeration: | Cooling Liquid | Mounting Method: | Split OD Mount |
| High Light: | cold cutting pipe equipment,industrial pipe cutting tools |
||

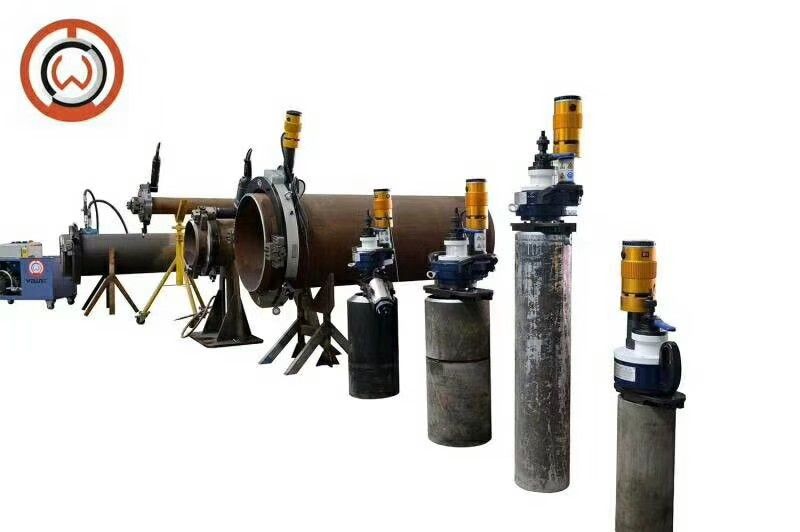

Split OD Mount Portable Pipe Cutting Beveling Machine Hydraulic Driven 220V - 240V
Production Description:
The series machine is ideal for all types of pipe cutting, beveling and end preparation.
The split frame design allows the machine to split in half at the frame and mount around
the OD of the in-line pipe or fittings for strong, stable clamping.
The equipment performs precision in-line cut or simultaneous cut/bevel, single point,
counterbore and flange facing operations, as well as weld end preparation on open ended pipe,
Ranging from 2” to 48” O.D.(DN50-1200), on most wall thicknesses and material.
16 models, working range for pipe OD 1"-48"
Non-standard model can be customized
Out-mounted style, clamping by multipoint jaws.
Split frame technology, easy to install on the pipeline.
Cold cutting and beveling, don't influence the pipe's material.
Auto feed, cutting and beveling at the one time, cost effective.
Varity of beveling shape: "U", "V", "Y", J", double "V", compound bevels.
Stationary ring is steel; rotation ring is aluminum, and steel optional
Electric, pneumatic, numerical control and hydraulic drive options are available.
Several different drive options are available to best position, the motor for a specific machining application.
It can be equipped a wide range of accessories to increase performance and expand.
Standard split frame pipe cutting and beveling machine, designed to cut, bevel, single point, counterbore
and face on the pipe, tube and flanges. It is a portable pipe cutting and beveling machine tools of clamshell
style. Smartly designed, ability to split in half at the frame, easy to install on the pipe line.
It is comprehensive used in pipework of oil, gas, food, petroleum, chemical, boiler, medicine machine,
nuclear power, and power supply construction. 16 models are available in 6 inch (152.4mm) increments,
with additional sizes available by special order.
Capability
Pipe cut off
Pipe end beveling
Pipe facing
Cutting and beveling
Compound beveling
Counter boring
Flange facing
Grooving
Main Features:
1. Cold Cutting and Beveling improve safety.
2. Cutting and Beveling simultaneous.
3. Split Frame: easy mounted on pipeline.
4. Self-acting tools feed.
5. Fast, Precision, In-situ Beveling.
6. Minimal Axial and Radial clearance.
7. Light weight and Compact design.
8. Easy install & Operation.
9. Pneumatic or Electric or Hydraulic driven.
10. Machining heavy-wall pipe from 2” up to 48”.
Technical Specifications:
| Model | working range(ID-OD) | wall thickness | rotation speed |
| OCH-560 |
Φ5"-10"(125-275mm) |
≤30mm |
12 r/min |
Note:Non-standard machine are available according to customers' requirement.
1. Drive Options: Pneumatic, Hydraulic, and Electric.
2. Air requirement: 1500L-3000L /Min@0.6/0.7Mpa.
3. Hydraulic requirement: 2-60L per minute 12.5Mpa.
4. Electric requirement:220-240V 1PH 50/60HZ.
5. Feed mode: Star wheel, automatically.
6. Feed rate: Fixed 0.08mm per circle.
Before you place order to us, please let us know the following information:
1. Choose suitable Model.
2. Confirm electric power supply ( Voltage, frequency and phase).
3. Confirm the beveling angel needed.
4. Confirm the welding joint required (U, V, Double V or Compound preparation).
5. Advise your pipe material ( Carbon steel, stainless steel or others).
6. Other special demands about machine.
- The spare parts required.
- If the pipe wall thickness more than 30mm, inform us in advance (Important).
