Product Details:
Payment & Shipping Terms:
|
| Capacity: | 762-914 | OD Inch: | 30"-36" |
|---|---|---|---|
| Wall Thickness: | Less Than 30 | Heavy-duty: | Less Than 110 |
| Rotation Speed: | 10 | ||
| High Light: | 36" Hydraulic Tube Bevelling Machine,42r/Min Hydraulic Tube Bevelling Machine,Split Frame Hydraulic Tube Bevelling Machine |
||

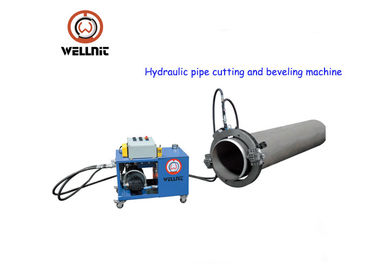

30''-36''Hydraulic Pipe Cutting and Beveling Machine
Features:
1. Cold Cutting and Beveling improves safety.
2. Cutting and Beveling simultaneous.
3. Split Frame: easy mounted on pipeline.
4. Tools feed automatically.

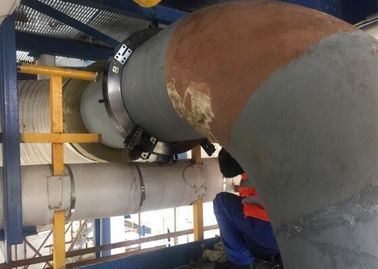

5. Fast, Precision, On-site Beveling.
6. Minimal Axial and Radial clearance.
7. Light weight and compact design.
8. Easy set-up & Operation.
9. Electric or Pneumatic or Hydraulic driven.
10. Machining heavy-wall pipe from 3/4" up to 56".
Technical parameters:
| model | specification | Processing outer diameter(mm) | Cutting bevel wall thickness | Cutter speed | |
| ordinary | Overload | ||||
| electric OCE | 89 | 25-89 | ≤30 | - | 42r/min |
| 159 | 65-159 | ≤30 | - | 20 | |
| 168 | 50-168 | ≤30 | - | 18 | |
| 230 | 80-230 | ≤30 | - | 15 | |
| 275 | 125-275 | ≤30 | ≤110 | 14 | |
| pneumatic OCP | 305 | 150-305 | ≤30 | ≤110 | 13 |
| 325 | 168-325 | ≤30 | ≤110 | 13 | |
| 377 | 219-377 | ≤30 | ≤110 | 12 | |
| 426 | 273-426 | ≤30 | ≤110 | 12 | |
| Hydraulic OCH | 457 | 300-457 | ≤30 | ≤110 | 12 |
| 508 | 355-508 | ≤30 | ≤110 | 12 | |
| 560 | 400-560 | ≤30 | ≤110 | 12 | |
| 610 | 457-610 | ≤30 | ≤110 | 11 | |
| 630 | 480-630 | ≤30 | ≤110 | 11 | |
| CNC OCS | 660 | 508-660 | ≤30 | ≤110 | 11 |
| 715 | 560-715 | ≤30 | ≤110 | 11 | |
| 762 | 600-762 | ≤30 | ≤110 | 11 | |
| 830 | 660-830 | ≤30 | ≤110 | 10 | |
| Metaibao OCM | 914 | 762-914 | ≤30 | ≤110 | 10 |
| 1066 | 914-1066 | ≤30 | ≤110 | 10 | |
| 1230 | 1066-1230 | ≤30 | ≤110 | 10 | |
| 1430 | 1230-1430 | ≤30 | ≤110 | 8 | |
Order Guide:
Before you place order to us, please let us know the following information
-Choose the right Model
-Confirm your electric power supply ( Voltage, frequency and phase)
-Confirm the beveling angel required
-Confirm the welding joint required (U, V, Double V or Compound preparation)
-Advise your pipe material ( Carbon steel, stainless steel or others)
Other special demands about machine:
-The spare parts needed
If the pipe wall thickness more than 30mm, inform us in advance (Important)!

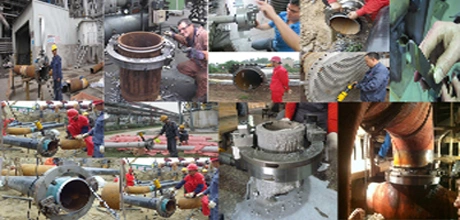

Products Show

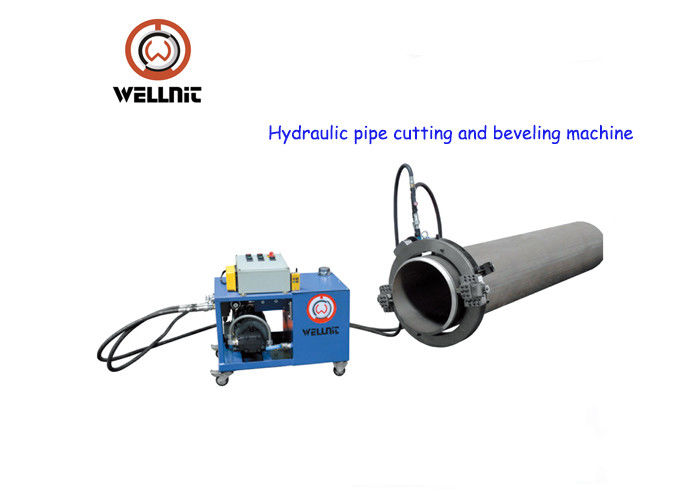

Hydraulic
Suitable for batches of large pipes with wall thickness ≤90

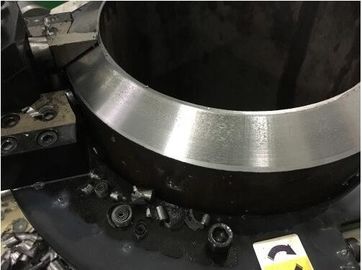

Cutting and beveling
Driven by hydraulic motor, rated voltage 380V
Phase power rated pressure 10MPa, flow rate 30L/Min
