Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Key Selling Points: | Compatitive Price | Rotation Speed: | 10r/min |
|---|---|---|---|
| Thickness: | Less Than 70mm | Mounted Type: | OD Mounted |
| Material: | Metal | Working Range: | 42"-48" |
| Highlight: | industrial pipe cutting tools,split frame pipe cutting machine |
||

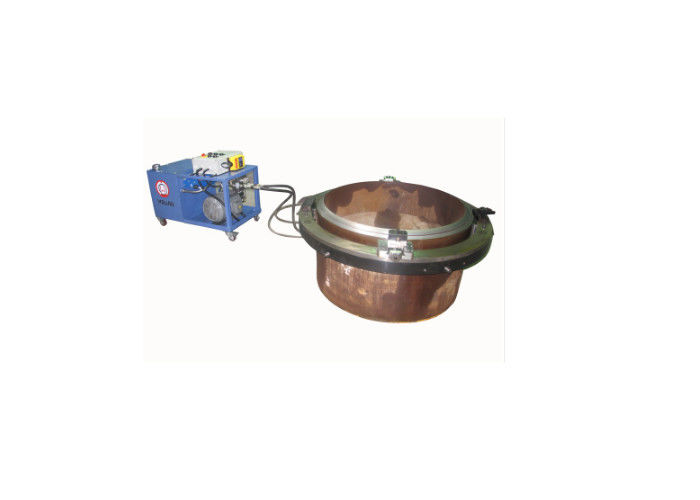

Pipe Split Frame Tube cutting and chamfering machine Clamshell Cold Cutting Portable Light
Metal Square Round Tube Cutting Beveling Machine Rectangular Pipe Cutting and Beveling is a professional cutting machine develop by wellnit.This Cutting machine is cost less and easy for move.Much suitable for some small and medium company.
Characteristic:
Applications:
Specifications:
Machine Operation Types:
Penumatic,Hydraulic power pack,CNC
Tech date sheet:
OD-Mounted Hydraulie Type :
| Model | Working Range (ID-OD) | Inch | Wall Thickness | Rotation Speed |
| OCE-89 | Φ25-89 | 3/4''-3'' | ≤35 | 100r/min |
| OCE-159 | Φ50-159 | 2''-5'' | ≤70 | 96r/min |
| OCE-168 | Φ50-168 | 2''-6'' | ≤70 | 90r/min |
| OCE-230 | Φ80-230 | 3''-8'' | ≤70 | 85r/min |
| OCE-275 | Φ125-275 | 5''-10'' | ≤70 | 80r/min |
| OCE-305 | Φ150-305 | 6''-10'' | ≤70 | 73r/min |
| OCE-325 | Φ168-325 | 6''-12'' | ≤70 | 70r/min |
| OCE-377 | Φ219-377 | 8''-14'' | ≤70 | 62r/min |
| OCE-426 | Φ273-426 | 10''-16'' | ≤70 | 58r/min |
| OCE-457 | Φ300-457 | 12''-18'' | ≤70 | 55r/min |
| OCE-508 | Φ355-508 | 14''-20' | ≤70 | 52r/min |
| OCE-560 | Φ400-560 | 16''-22'' | ≤70 | 52r/min |
| OCE-610 | Φ457-610 | 18''-24'' | ≤70 | 50r/min |
| OCE-630 | Φ480-630 | 20''-24'' | ≤70 | 50r/min |
| OCE-660 | Φ508-660 | 20''-26'' | ≤70 | 50r/min |
| OCE-715 | Φ560-715 | 22''-28'' | ≤70 | 48r/min |
| OCE-762 | Φ600-762 | 24''-30'' | ≤70 | 48r/min |
| OCE-830 | Φ660-813 | 26''-32'' | ≤70 | 45r/min |
| OCE-914 | Φ762-914 | 30''-36'' | ≤70 | 41r/min |
| OCE-1066 | Φ914-1066 | 36''-42' | ≤70 | 32r/min |
| OCE-1230 | Φ1066-1230 | 42''-48'' | ≤70 | 30r/min |
| OCE-1430 | Φ1230-1430 | 48''-56'' | ≤70 | 28r/min |

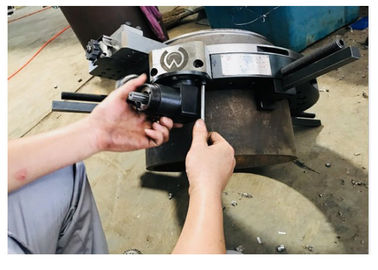

Machine on site:
Packaging: Standard machine will be ready and stabled in a wooden case.
Shipping: Able to support with any shipping method as per customer 's requirements.
COMPANY INTRODUCTION:
Zhejiang Wellnit Mechanical Technology Co.,Ltd (Original:Wenzhou Huakai Co.,Ltd)is a professional manufacture and exporter that is concerned with the design,development and production of pipe cutting and beveling machine,portable plate beveling machine.
The products include :
we have recieved ISO9001:2008,CE certificates etc.
We are dedicate to continuing the spirit of innovation , manufacturing excellence, enthusiastic work force and the superb after sale service ,we are confident our future will be more and more successful.
To be honest, pioneer and enterprising, seek for truth and innovation" is our credo.
And "Your satisfaction is our great success"
Order Guide:
Before you place order to us, please let us know the following information:
Choose the right Model
Confirm your electric power supply ( Voltage, frequency and phase)
Confirm the beveling angel required
Confirm the welding joint required (U, V, Double V or Compound preparation)
Advise your pipe material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed
If the pipe wall thickness more than 30mm, inform us in advance (Important)
