Light Weight Pneumatic Pipe Beveler Internal Expanding Cold Beveling Machine

Name: Light Weight Pneumatic Pipe Beveler Internal Expanding Cold Beveling Machine
Brand: Wellnit
SKU: ISP-252-1
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (156 reviews)

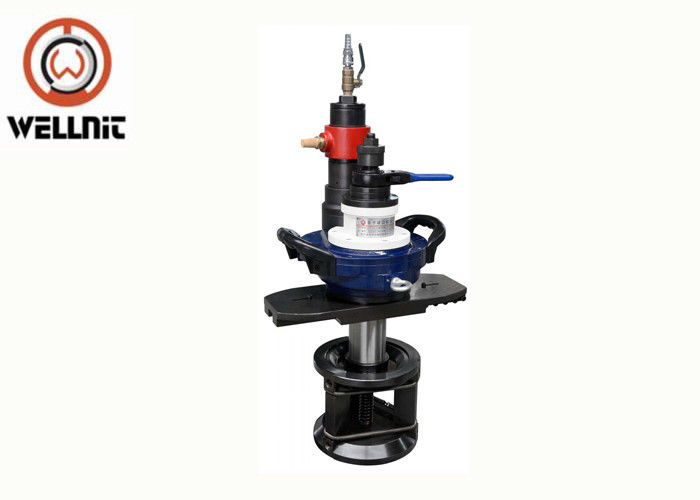

Large Image : Light Weight Pneumatic Pipe Beveler Internal Expanding Cold Beveling Machine

Product Details:

Place of Origin:	China
Brand Name:	Wellnit
Certification:	ISO9001
Model Number:	ISP-252-1

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	plywooden
Delivery Time:	within 7 days after received 100% payment
Payment Terms:	T/T
Supply Ability:	50 sets for a mounth

Contact Now

Detailed Product Description

Supply:	220-240V 50-60Hz	Operation:	Penumatic
Tube Thickness:	Less Than 20 (Standard)	Speed:	50r/min
Working Method:	No Spark,Cold Working	Fix Method:	Inside Mounted
Working Range:	18-30mm(Inside Diameter)
High Light:	tube bevelling machine , pneumatic beveling tools

Light Weight Pneumatic Pipe Beveler Internal Expanding Cold Beveling Machine

Main performance of the product

A complete range of pipe beveling machines for mechanical weld preparation and orbital welding makes pipe beveling job easy to be done on-site or in the workshop. The pipe beveling machine is fixed on the pipe with an inside or outside clamping mechanism. The pipe beveling machine is operated by one worker, who gives a manual feed to the pipe beveling machine with a lever, ratchet or turnstile. Two or more cutters are fixed in the blade holder. The speed of pipe beveling is adjustable and depends on material, wall thickness and diameter.

A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
Driveing Type:Electric-ISE,Pneumatic-ISP.
Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
Angle:Beveling angle as per your required.

This series is ID Mounted Welding Preparation Pipe Chamfering Tool with the following advantages:

Lighter weight,minimal radial space,Easy to operate.
A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
Driveing Type:Electric-ISE,Pneumatic-ISP.
Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
Angle:Beveling angle as per your required.

Lighter weight,minimal radial space,Easy to operate.

Model	Working Range(ID/OD)		Wall Thickness(mm)	Rotation Speed(r/min)
ISP-30	Φ16-28	Φ19-38	≤15	60
ISP-80	Φ28-76	Φ32-89	≤15	55
ISP-120	Φ40-110	Φ48-120	≤15	38
ISP-159	Φ65-159	Φ72-168	≤20	35
ISP-252-1	Φ80-240	Φ90-273	≤20	16
ISP-252-2	Φ80-240	Φ90-273	≤75	16
ISP-352-1	Φ150-330	Φ160-356	≤20	14
ISP-352-2	Φ150-330	Φ160-356	≤75	14
ISP-426-1	Φ250-410	Φ260-430	≤20	12
ISP-426-2	Φ250-410	Φ260-430	≤75	12
ISP-630-1	Φ300-600	Φ320-630	≤20	10
ISP-630-2	Φ300-600	Φ320-630	≤75	10
ISP-850-1	Φ590-830	Φ610-850	≤20	9
ISP-850-2	Φ590-830	Φ610-850	≤75	9

Technical Parameter

ISP-252-1 Beveling Machine
Voltage	220-240V
Frequency	50-60Hz
Power	1600W
Wall Thickness	≦20
Working Range	80-240mm
Rotation Speed	16r/min
Net Weight	47kg

Non-standard machines are available according to customers’requirement.

In general for weld preparation of heavy wall pipes the weld edge end has to be beveled in 0°, 30°, 37,5 ° or j-shape. Mostly companies use a heavy grinder for this work. This takes a long time, is not precise and causes terrible work conditions for the worker. Dust, vibrations and noise cause worker diseases. Low quality of weld preparation reduces the quality of welding junction and long working time increase production costs.

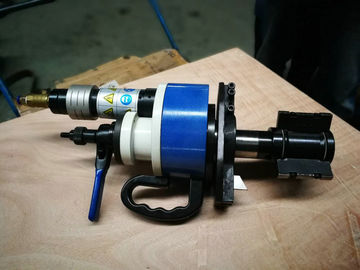

Light Weight Pneumatic Pipe Beveler Internal Expanding Cold Beveling Machine 0

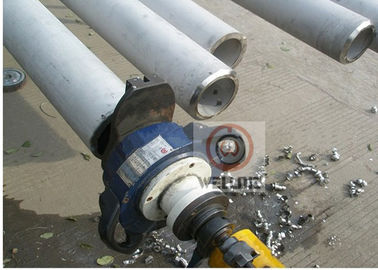

Light Weight Pneumatic Pipe Beveler Internal Expanding Cold Beveling Machine 1
