Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Power: | 220-240V 50-60Hz | Operation: | Penumatic |
|---|---|---|---|
| Thickness: | Less Than 20 (Standard) | Rotation: | 14r/min |
| Working Method: | No Spark,Cold Working | Installation: | Inside Mounted |
| Working Range: | 300-630mm(Inside Diameter) | ||
| High Light: | pipe chamfering machine,pneumatic beveling tools |
||

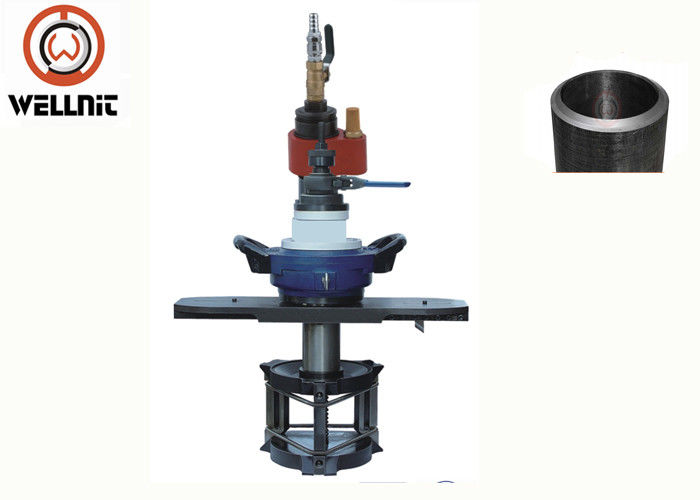

Self Centered Pipe Prepping Machine Tube Beveler With Penumatic Driven
Main performance of the product
This series is ID-Mounted pipe beveling machine,with the following advantages:Easy operation, light weight and convenient to carry.
The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe. A draw nut is tightened, which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the material from the end, a bevel is produced which conforms to the angle predetermined by the angle ground into the bit. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.
| ISP-630-1 Beveling Machine | |
| Voltage | 220-240V |
| Frequency | 50-60Hz |
| Power | 1600W |
| Wall Thickness | ≦20 |
| Working Range | 300-600mm |
| Rotation Speed | 10r/min |
| Net Weight | 132kg |
Non-standard machines are available according to customers’requirement.
This series is Air Operated Welding Preparation Pipe Beveling Machine with the following advantages:
Lighter weight,minimal radial space,Easy to operate.
A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
Driveing Type:Electric-ISE,Pneumatic-ISP.
Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
Angle:Beveling angle as per your required.
