Portable Handheld Beveling Machine Penumatic Driven Cold Working 10 R/min

Portable Handheld Beveling Machine Penumatic Driven Cold Working 10 R/min
Portable Handheld Beveling Machine Penumatic Driven Cold Working 10 R/min Portable Handheld Beveling Machine Penumatic Driven Cold Working 10 R/min Portable Handheld Beveling Machine Penumatic Driven Cold Working 10 R/min

Large Image :  Portable Handheld Beveling Machine Penumatic Driven Cold Working 10 R/min

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: ISP-630-2
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: plywooden
Delivery Time: within 7 days after received 100% payment
Payment Terms: T/T
Supply Ability: 50 sets for a mounth
Detailed Product Description
Supply Power: 220-240V 50-60Hz Operation Way: Penumatic
Thickness: Less Than 75 (Standard) Speed Rotation: 10r/min
Working WAY: No Spark,Cold Working Installation Way: Inside Mounted
Working Range: 300-630mm(Inside Diameter)
High Light:

pipe chamfering machine

,

pneumatic beveling tools



Portable Handheld Beveling Machine Penumatic Driven Cold Working 10 R/min





Main performance of the product

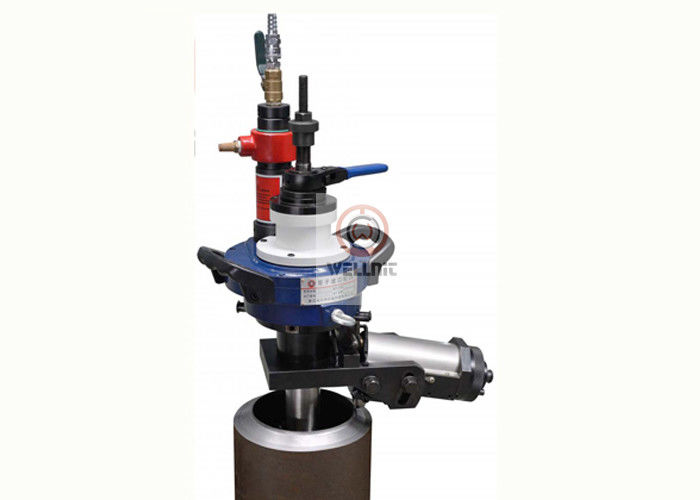

This series is ID Mounted Welding Preparation Pipe Chamfering Tool adopts air motor,main applied at the site of explosive and fireproof,power supply required:0.6-0.8MPa compressed air. With the advantage of:Fast Installation,self centered and working safely. A draw nut is tightened, which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the material from the end, a bevel is produced which conforms to the angle predetermined by the angle ground into the bit. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.



with the following advantages:




  • Lighter weight,minimal radial space,Easy to operate.

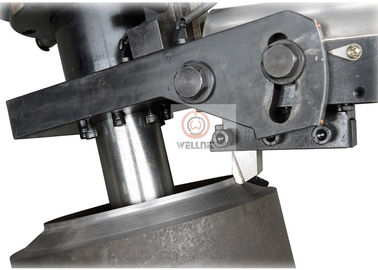

  • A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
  • Driveing Type:Electric-ISE,Pneumatic-ISP.
  • Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
  • Angle:Beveling angle as per your required.



  • Technical Parameter
  • ISP-630-2 Beveling Machine
    Voltage 220-240V
    Frequency 50-60Hz
    Power 1600W
    Wall Thickness ≦75
    Working Range 300-630mm
    Rotation Speed 10r/min
    Net Weight 132kg
Non-standard machines are available according to customers’requirement.





Portable Handheld Beveling Machine Penumatic Driven Cold Working 10 R/min 0

Portable Handheld Beveling Machine Penumatic Driven Cold Working 10 R/min 1

Portable Handheld Beveling Machine Penumatic Driven Cold Working 10 R/min 2
