Product Details:
Payment & Shipping Terms:
|
| Model Number: | HK-12 | Dimension(L*W*H): | 190*195*140 |
|---|---|---|---|
| Voltage: | 110V/220V/380V | Weight: | 10KG |
| Rated Power: | 2.2kw | Usage: | Cutting Metal |
| High Light: | welding and cutting machine,welding & cutting equipment |
||
Light Weight Quick Cut Oxygen Welding & Cutting Equipment For Cutting Metal
Product Description
1. The intergration main boby is made of aluminum of high strength by die-castingmto ensure this machine with a small size,light weight and reliable durability.
2. It is light weight and compact structure to ensure the machine becomes ideal portable machine
3. Speed system adopts mechanical adjustment which can keeps running continuously under high temperature.
4. Advanced motor with fan for cooling.
5. Circular rail can be equipped as required for circular piece cutting(optional)
6. Beveling range:I.Y>V(45°)
7. The machine is widely used to oil production,chemical industry,metal structure and other manufacturers etc.

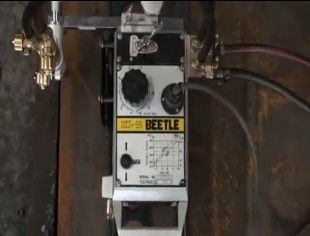

1. Electric outlet: Used for connection of power cable to supply electric power.
2. Speed adjuster: Turn the knob clockwise, and the machine will travel faster.
3. Clutch: The lever operation will stop driving.
4. Drive wheel: Incline the switch in the direction of the arrow to move the machine in that direction.
5. Drive wheel: Engage the clutch (ON) to transmit driving power, and the machine will begin to travel.
6. Torch side handle: This handle adjusts the lateral position of the torch.
7. Handle: Hold the handle to carry the machine. As well as for positioning.
8. Heat shield: The shield protects the machine form the heating flame.
9. Idle wheel
Specifications
|
1. Weight: |
7.5kg |
|
2. One torch with body: |
10kg |
|
3. Two torch with body: |
14kg |
|
4. Machine size: |
350×140×175mm |
|
5. Wheel distance: |
160mm |
|
6. Power source: |
±10% |
|
7. Reduction gear: |
Single cone system |
|
8. Cutting edge sharp: |
I,V (45°) |
|
9. Cutting thickness: |
6~100mm( by standard accessories) |
|
10. Moter: |
1500r.p.m |
Accessories
|
Cabtyrecode: |
1set |
|
Tip: |
102( for acetylene ) or 106(for propane) #0,1,2,one each |
|
Weigh: |
1Pc(two torch set only) |
|
Weigh supporter: |
1PC (two torch set only) |
|
Fitting: |
1PC (two torch set only) |
|
Order |
Model |
L*W*H |
Supply Voltage |
Da.of.Circle Ctting(mm) |
Cutting thickness |
Cutting speed |
Weight |
|
HW1020 |
Hk-12 |
350× 140× 175 |
AC220/50 |
Φ290-Φ540 |
6-100 |
150-800 |
10 |
|
HW1022 |
HK-12A |
350× 140× 175 |
AC220/50 |
Φ910-Φ1160 |
6-100 |
150-800 |
10 |
|
HW1030 |
HK-12MAX-I |
600× 175× 228 |
AC220/50 |
Φ390-Φ640 |
6-100 |
150-800 |
15 |
|
HW1031 |
HK-12MAX-II |
600× 175× 228 |
AC220/50 |
Φ1010-Φ160 |
6-100 |
150-800 |
21 |
|
HW1032 |
HK-12MAX-3 |
430*220*215 |
AC220/50 |
Φ390-Φ640 |
5-100 |
80-800 |
11.5 |
