Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Dimension(L*W*H): | 3.5*2.6*0.4M | Cutting Material: | Metal Stainless Steel Carbon |
|---|---|---|---|
| Voltage: | 220V/380V/110V | Weight: | 175KG |
| Cutting Mode: | Plasma Cutting+ Flame | Traveling Speed: | 3000mm/min |
| Color: | Red | ||
| High Light: | welding & cutting equipment,welding & cutting machine |
||
Metal Stainless Steel Welding And Cutting Equipment 40A - 400A Plasma Source
portable cnc flame/plasma cutting machine can be programmed to cut any plane shape
parts composed of beeline and arc ,which are same as large gantry cutting machines . It is
equipped with a 5.7 inch LED with dynamic and static graphical display .It is directly
perceived and very easy to learn .It can be programmed to cutting parts directly , and also
can be operated in computer translating instructions into a program file by CAD program ,
and then deducing it via U hardware .The standard positioning of this machine is flame
cutting ,external hanging plasma cutter is also workable .
1. Economical and Practical,especially for small and medium-sized enterprises;
2. Small volume,light weight,easy to move,no occupying fixed site;
3. Preset graphics database,can store over 1000 cutting program files;
4. Motors,drives,electromagnetic valve,and other important components,all use well-known
brands at home and abroad;
5. Reserve plasma cutting function interface,support for plasma cutting;
6. Electric hoist,convenient ant quick.
7. Programmable cutting arbitrary shape parts of line and arc .
8. Dynamic and static graphic display, easy to learn.Can convert CAD file in computer,
through USB flash drive transmits to machine to realize cutting all kinds' graphs and also
can program and operate directly on the machine .
9. Track and movement organizations adopt unique design, ensuring the working precision
of machine.
10. Can use flame cutting (gas cutting ) and plasma cutting .
11. Interfaces in English or Chinese can be converted freely.
12. Economical, Portable and easy to operate.
13. Great working stability, effective shield plasma high frequency interference.
The Separate of HNC-1800W Portable CNC cutting Machine
| No. | Technical specification of Portable CNC Oxyfuel gas Flame cutting machine | |||
| 1 | Model | JX-1525 | JX-1530 | JX-1660 |
| 2 | Power source | AC 220/380±10%VAC 50/60Hz | ||
| 3 | Cutting mode | O2/C3H8 or C2H2 | ||
| 4 | Effective cutting range(mm) | 1500*2500 | 1500*3000 | 1600*6000 |
| 5 | Input Voltage | 220V, 50HZ | ||
| 6 | Cutting speed(mm/min) | 0-8000mm/min | ||
| 7 | Cutting thickness(Flame)(mm) | 6-160 (O2/C3H8 or C2H2) | ||
| 8 | Move precision | ±0.2mm/m | ||
| 9 | Torch | Flame, electric height adjustment(±60mm) | ||
| 10 | Processing thickness(mm) | 0.5-15mm | ||
| 11 | Cutting system | Start control system | ||
| 12 | Host weight(kg) | 19 | ||
| 13 | Total weight(kg) | 100 | 120 | 150 |
| 14 | Gas pressure(Mpa) | Max.0.1 | ||
| 15 | Oxygen pressure(Mpa) | Max.0.7 | ||
| 16 | Type of gas | C3H8 C2H2 | ||
| 17 | Emergency stop | Yes | ||
| 18 | Working temperature | -5~45℃ | ||
| 19 | Power | 8.5kw | ||
| 20 | Plasma power | 40A to 200A | ||
| 21 | ARC | Untouched arc striking | ||
| 22 | Processing Materials | Iron, steel aluminum sheets, galvanized sheets, Titanium plates |
||

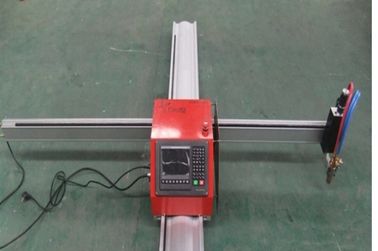

The Heavy Duty Rail type of HNC-1800W Portable CNC cutting Machine

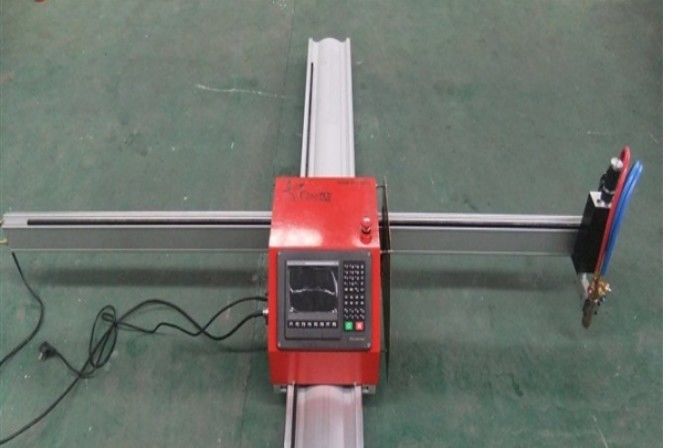

The Standard Rail type of HNC-1800W Portable CNC cutting Machine

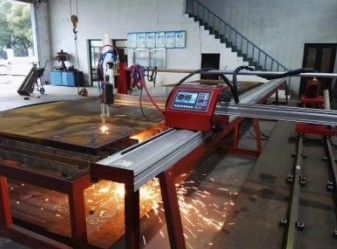

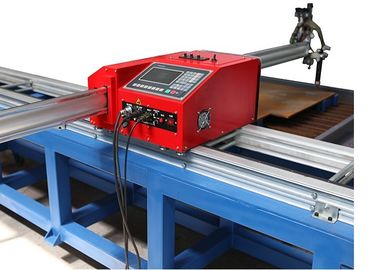

HNC-1800W Portable CNC cutting Machine working on cutting table
The torch part of HNC-1800W Portable CNC cutting Machine
| Model |
Cutting Range |
Supply Voltage |
Cutting TorchNumber |
Cutting speed |
MAX no-loading |
Overall dimensions |
Weight |
| HNC-1800W-3 | 1800*3000 | AC220V-50HZ | 1 | 50-750 | 3000 | 3.5*2.6*0.4 | 175 |
| HNC-1800W-3.5 | 1800*3500 | AC220V-50HZ | 1 | 50-750 | 3000 | 4*2.6*0.4 | 191 |
| HNC-1800W-4 | 1800*4000 | AC220V-50HZ | 1 | 50-750 | 3000 | 4.5*2.6*0.4 | 207 |
| HNC-1800W-5 | 1800*5000 | AC220V-50HZ | 1 | 50-750 | 3000 | 5.5*2.6*0.4 | 239 |
| HNC-1800W-6 | 1800*6000 | AC220V-50HZ | 1 | 50-750 | 3000 | 6.5*2.6*0.4 | 271 |
