Product Details:
Payment & Shipping Terms:
|
| Material: | Metal Pipe | Working Range: | 76-114mm |
|---|---|---|---|
| Pipe Thickness: | Bellow 12mm | Operation: | Electric |
| Feature: | Auto-feed | ||
| High Light: | 114mm Automatic Chamfering Machine,tube Beveling chamfering machine,12mm Automatic Chamfering Machine |
||

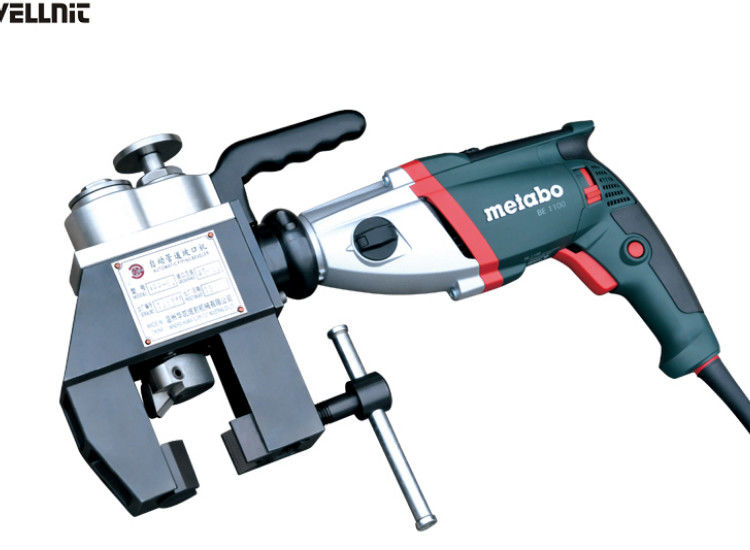

OD Mounted Auto Feed Pipe Beveling Tool For Repair Tool ISO-63C
Features:
OD-Mounted
Light weight
Ajustable speed
Compact design, good rigidity
Tool feed/back automatically
Original German METABO motor
Ingenious centering device, easy for process various of pipe size
Specifications:
| Model | Working Range (OD mm) | Wall thickness | Clamp Size (OD mm) |
| ISO-63C | 28-63 | ≤12mm | 28, 32, 42, 45, 54, 57, 60, 63 |
| ISO-76C | 42-76 | 42, 45, 54, 57, 60, 63, 68, 76 | |
| ISO-89C | 63-89 | 63, 68, 76, 83, 89 | |
| ISO-114C | 76-114 | 76, 83, 89, 95, 102, 108, 114 |

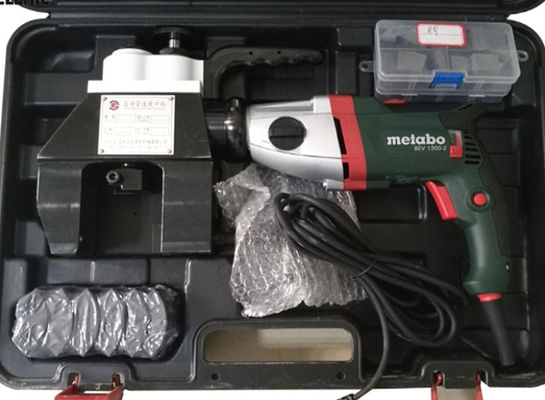

Product in factory showing:
Order Guide:
Before you place order to us, please let us know the following information:
Choose the right Model
Confirm your electric power supply ( Voltage, frequency and phase)
Confirm the beveling angel required
Confirm the welding joint required (U, V, Double V or Compound preparation)
Advise your pipe material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed
