Product Details:
Payment & Shipping Terms:
|
| Power Supply: | AC 380V 50Hz | Motor Power: | 4800W |
|---|---|---|---|
| Bevel Angle: | 0 To 60 Degree | Bevel Width: | 1-60mm |
| Clamp Thickness: | 6-60mm | ||
| High Light: | High Efficiency Plate Beveling Machine,Double Motor Plate Beveling Machine,380V Plate Beveling Machine |
||

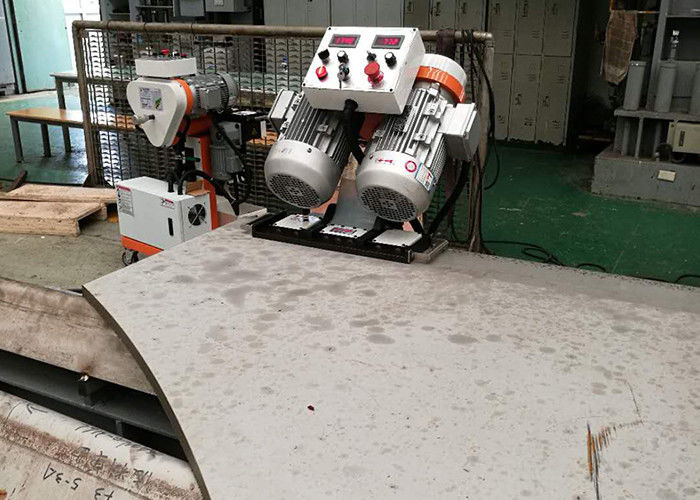

Automatic Feed double motor high efficiency plate beveling machine
Performance of products
This series of machine special design for metal plate, double motor , stronger power , automatic feed ,automatic matching , one worker can processing several machine together, several side of plate can processing together, more efficiency! Save labor and cost.Machine can process small plate and big plate. can process thin plate and thick plate. bevel angle can be adjustable, bevel depth can be adjustble, high accurate.can process carbon steel , stainless steel , aluminum alloy , compound plate etc.
Function of products

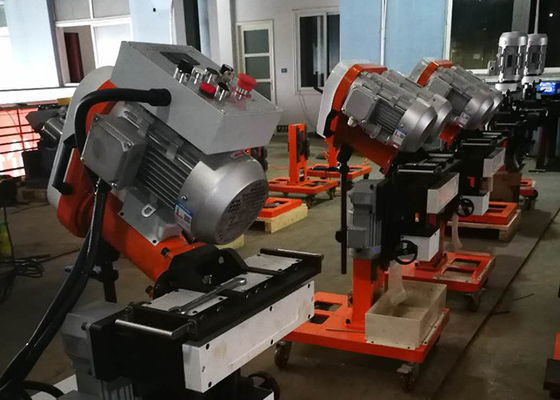

Machine Details

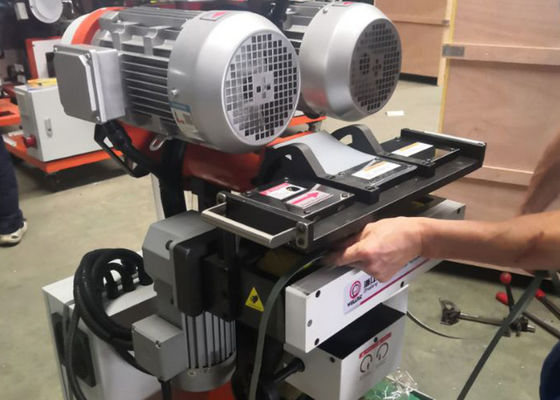

CNC tool holder , install 6pcs blades , 6pcs blades processing together , high efficiency!
Bevel Type
Machine Specification
| Model | PB-80 |
| Power Supply | AC 380V 50Hz |
| Motor Power | 4800W |
| Spindle Speed | 750-1440r/min ( Adjustable ) |
| Feed Speed | 0-1500r/min ( Adjustable ) |
| Bevel Width | 1-60mm |
| Single Bevel Width | 1-20mm |
| Bevel Angle | 0 - 60 Degree |
| Clamp Thickness | 6-60mm |
| Clamp Width | greater than 100mm |
| Clamp Length | greater than 300mm |
| Worktable Height | 820-860mm |
| Net Weight | 270Kg |
| Processing Materials | Carbon Steel , Stainless Steel , Aluminum Alloy etc |
