Home ProductsPlate Edge Milling Machine

Carbon Steel 1050r/Min Ra 3.2 Plate Edge Milling Machine

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

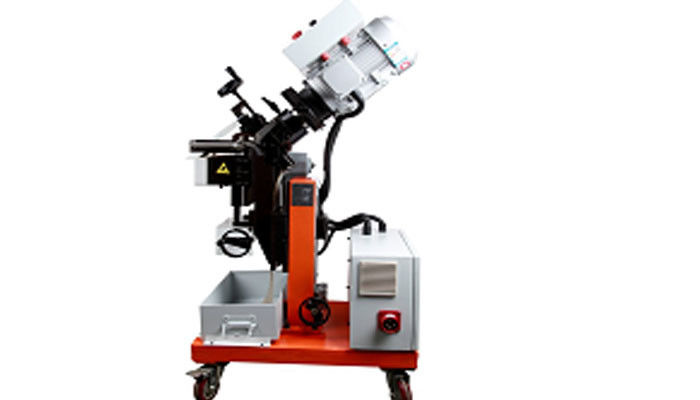

Carbon Steel 1050r/Min Ra 3.2 Plate Edge Milling Machine

Carbon Steel 1050r/Min Ra 3.2 Plate Edge Milling Machine
Carbon Steel 1050r/Min Ra 3.2 Plate Edge Milling Machine
video play

Large Image :  Carbon Steel 1050r/Min Ra 3.2 Plate Edge Milling Machine

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: PB-60L
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wooden box
Delivery Time: within 7 days after received 100% payment
Payment Terms: T/T,, L/C
Supply Ability: 100 sets for a mounth
Detailed Product Description
Power Offer: 380V 50Hz Operation Way: Electric
Thickness: 6-60mm (Standard) Feed Speed: 1050r/min
Working WAY: Automatic Feed Power: 3400W
Bevel Width: 1-55mm Material: Metal
Bevel Angle: 0°-90° Spindle Speed: 0-1500r/min
Single Bevel Width: 1-20mm
High Light:

3400W Plate Edge Milling Machine

,

1050r/Min Plate Edge Milling Machine

,

Ra 3.2 Plate Milling Machine

PB-60L Wellnit Factory Price Carbon Steel Plate Cold Milling Beveling Machine High Quality Wide Use On Site





Machine Feature:



1. Safety lock, Rear feed motor design and independent design of electric box. more sage.

2. OL Protection

3. Digital Display,Easy prcessing with Operation.

4. Feed adjustable,speed adjustable

5. Angle Adjustable

6. Milling surface reach Ra 3.2-6.3



Specification:





Power Supply AC 380V 50HZ
Total Power 3400W
Spindle Speed 1050r/min
Feed Speed 0-1500mm/min
Clamp Thinkness3 6-60mm
Clamp Width 80mm
Processing Length Above 300mm
Bevel Angle 0°-90° Adjustable
Single Bevel Width 1-20mm
Bevel Width 1-55mm
Bevel Plate φ60mm
Cutter Qty 5pcs
Workable Height 820-860mm
Material CS,SS,Aluminum,Composite
Net Weight 220kg
Gross Weight 280kg
Package Size 1300*760*680mm



Non-standard machines are available according to customers’requirement.



Bevel result show:

Carbon Steel 1050r/Min Ra 3.2 Plate Edge Milling Machine 0

Carbon Steel 1050r/Min Ra 3.2 Plate Edge Milling Machine 1

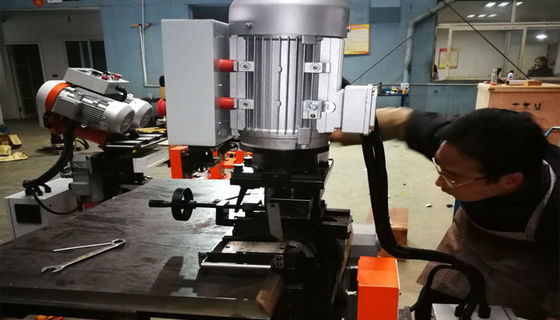

Our machines in factory:



Carbon Steel 1050r/Min Ra 3.2 Plate Edge Milling Machine 2

Carbon Steel 1050r/Min Ra 3.2 Plate Edge Milling Machine 3













Packing:

Machine will be stabled on pallet and safety in wooden case



Selling Units: Single item
Single package size: 1300*760*680mmmm
Single gross weight: 280.0 KG
Package Type: Wooden Case



Carbon Steel 1050r/Min Ra 3.2 Plate Edge Milling Machine 4

Carbon Steel 1050r/Min Ra 3.2 Plate Edge Milling Machine 5



Service commitment for after-sales:



1, One year warranty, Life - Long maintenance service.

2, Free installation, debugging operation,maintenance and training for the operation and maintenancepersons by vedio / Tel / Email or engineers visiting in factory.

3, Providing free upgraded available software

Carbon Steel 1050r/Min Ra 3.2 Plate Edge Milling Machine 6

RFQ:



Q1.How to send my enquiry?

You can contact us by email, phone call, message (Whats APP, We Chat, Skype).

Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.

Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.

Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.

Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.

Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.

Q7.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.



Before Order need to learn :



1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.what can you buy from us?
Tube Expander,Tube Cleaners,Internal Tube Cutter,Tube Pulling Machine,Tube Bevelling Machine

3. why should you buy from us not from other suppliers?
TRITORC is a leading manufacturer of Hydraulic, Pneumatic & Electric Torque Wrenches,Tube Expander,Tube Pulling Machine,Tube Bevelling Machine,Bolt Tensioners, Heavy Duty Impact Sockets, Manual Torque Multipliers, Turbine Tools,and other accessories.

4. what services can we provide?
Accepted Delivery Terms: FOB,DEQ;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T;
Language Spoken:English,chinese
