Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Power Supply Voltage: | AC 380V 50Hz | Total Power: | 6400W |
|---|---|---|---|
| Slope Width At One Time: | 1-20mm | Maximum Milling Width: | 1-60mm |
| Spindle Speed: | 750-1440r/min | Feed Rate: | 0-1500r/min |
| High Light: | Flat Milling Plate Beveling Machine,Cold Steel Plate Beveling Machine,1440r/Min Cutting Plate Beveling Machine |
||

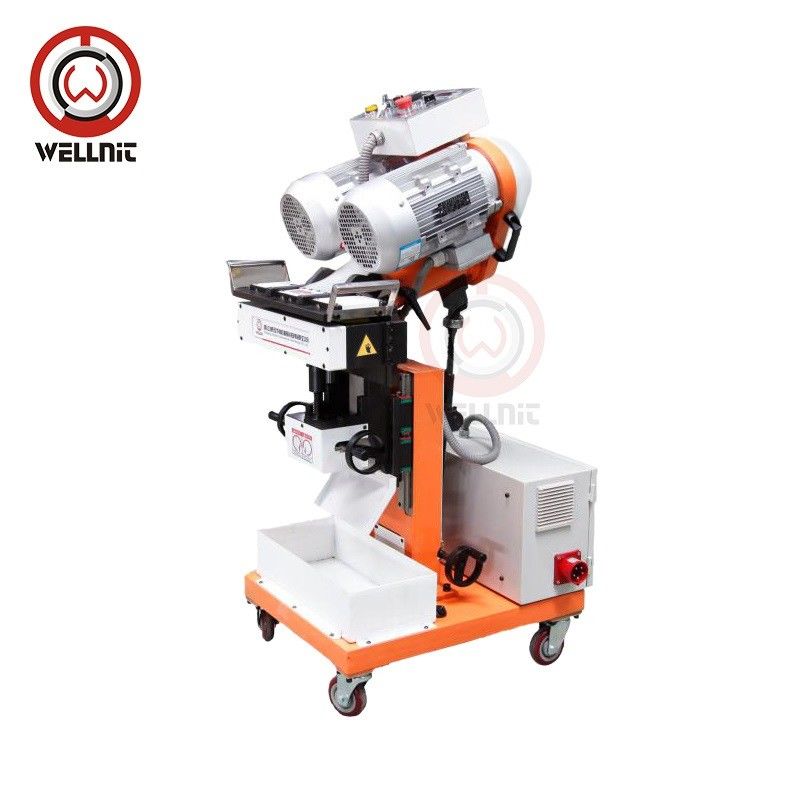

Automatic walking steel plate milling machine, electric flat beveling machine, chamfering and milling machine PB-80
Features:
1.High finish;
2.Stable processing performance;
3.Cold working, no sparks;
4.Double frequency conversion speed regulation, both spindle and feed speed are adjustable;
5.Special for thick plate, strong motor;
Automatic traveling steel plate milling machine PB-80
Product parameter:
| Cutting motor speed | 750-1440r/min (arbitraryadjustment) | Minimum clamping width of steel plate | ＞100mm |
| Feed speed | 0-1500r/min (arbitraryadjustment) | Processing steel plate length | >300mm |
| Milling angle | 0-60° (arbitrary adjustment) | Height of working table | 820-860mm |
| Clamping steel plate thickness | 6-60mm | Machinable materials | carbon steel, stainless steel, aluminum alloy copper, composite board and other materials |
