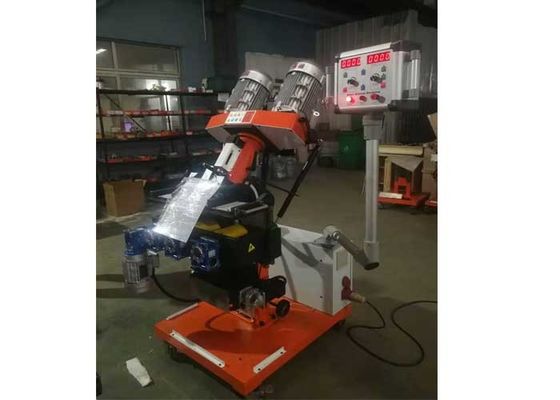

Chamfer 1500r/Min Steel Plate Beveling Machine Automatic Feed

Chamfer 1500r/Min Steel Plate Beveling Machine Powerful With Two Motors More 6400W Thick Plate Up To 100mm

Machine Fearture:

Self-walking Automatic beveling machine has the advantages of small in size, light weight, easy to move and easy operation. It is applicable to use in the workshop and small factory. The working speed of PB-100 automatic beveling machine is as good as the traditional milling machine. In addition, this model machine is equipped with common cemented carbide cutting blade to reduce the cost for customers.

Production Feature:

The machine special for thick plate bevel and milling groove slope is large. The processing angle can be adjusted 0-90degree. The maximum plate thickness is 6-80mm and the processing speed is 0-1.4m per minute.Wide range of applicable plate types: applicable to carbon steel, chromium steel, cast iron, stainless steel, hard plastic and other plates.The processing method is elegant and flexible, and the large and small plates can be easily processed (the machine can walk the groove by itself when processing the super large plate with the plate bracket; the small plate processing machine will keep still and the plate will automatically move for groove processing).Complete cold cutting without changing the original material of the plate.The processing speed can be adjusted freely (equipped with double motors, powerful power).It is easy to operate and easy to use.High safety factor of equipment.

Features:

1. Safety lock, Rear feed motor design and independent design of electric box. more sage.

2. OL Protection

3. Digital Display, Easy processing with Operation.

4. Feed adjustable,speed adjustable

5. Angle Adjustable in range

6. Milling surface reach Ra 3.2-6.3

7.Available for V/Y type of Bevel and milling to Vertical.

8.Processing material: Stainless steel, carbon steel,AL Alloy etc.

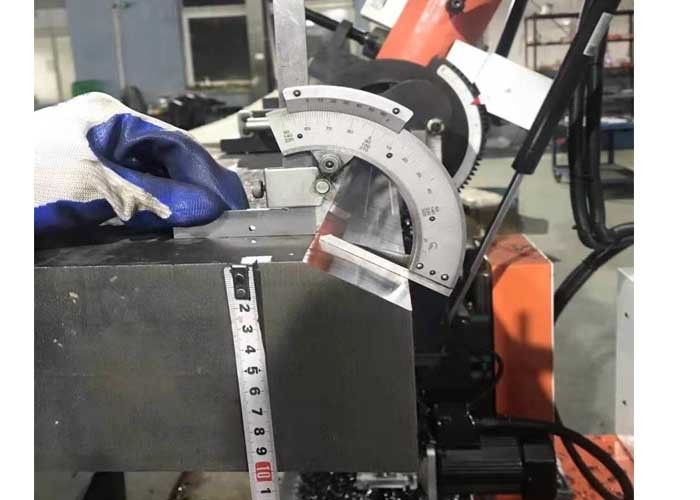

Machine process plate thickness picture:

Technical Parameters:

Machine questions:

1.How to choose a suitable model?

RE: Before choose the model,we need to know more details about the pipe,such as the I.D,

O.D,wall thickness,the material of the pipe and the enviroment of the site and the requirement of the end face. Then it will be more convient for all of us to make an immediately

decision .Thanks!

2.Do you have another choice about the driven?

RE: Of course,we have widely variety of choices for you, such as the electric,pneumatic,

hydraulic and NC.

3. About the type of the beveling?

RE: The normally type is the v and U,if you have any special requirement, please let us know it, i believe that our engineer can provide a solution for you.

Before Order Guide need to learn:
