Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Voltage Frequency: | AC 380V 50Hz | Bevel Width: | 1-45mm |
|---|---|---|---|
| Single Bevel Width: | 1-15mm | Bevel Angle: | 10°-60° |
| Total Motor Power: | 3400W | Spindle Speed: | 1050r/min |
| High Light: | Self Propelled Plate Milling Machine,Chamfering Plate Milling Machine,CNC Blades Edge Milling Machine |
||

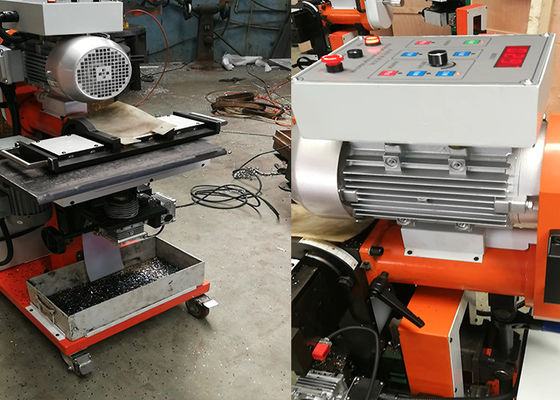

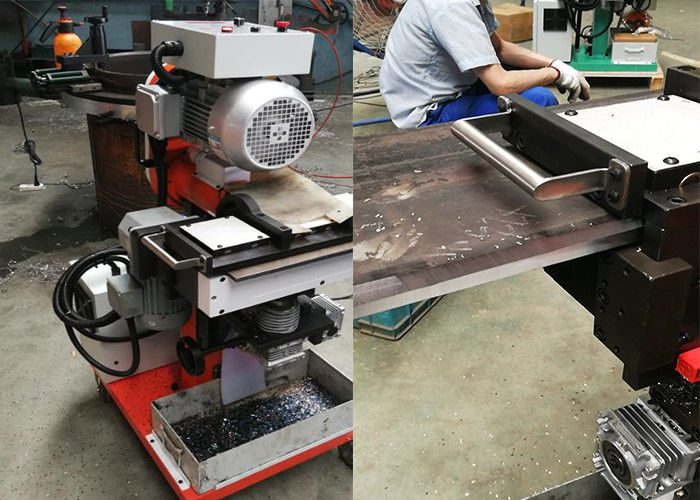

PB-60 steel plate milling machine large steel plate beveling machine self-propelled automatic high-finish chamfering
Main performance
The PB-60 edge milling machine convenient movement and simple operation. The
finish. of the bevel is as high as Ra3.2-6.3.It is suitable for small factories. The milling
machine is equipped with commonly used CNC blades to make the customers use the
cosl more cheaply.
| Product number | PB-60 | PB-60L | PB-60R | PB-80 |
| Bevel width | 1-45mm | 1-55mm | 10-55mm | 1-60mm |
| Single bevel width | 1-15mm | 1-20mm | 10-15mm | 1-20mm |
| Bevel angle | 10°-60° | 0°-90° |
10°-90° -10°-90° |
0°-60° |
| Total motor power | 3400W | 3400W | 3400W | 4800W |
| Spindle speed | 1050r/min | 1050r/min | 1050r/min | 750-1440r/min |
| Clamping board width | ＞100mm | ＞80mm | ＞100mm | ＞100mm |
| Feed rate | 0-1500r/min | 0-1500r/min | 0-1500r/min | 0-1500r/min |
| Net weight of whole machine | 220KG | 220KG | 225KG | 270KG |
| Voltage frequency | AC 380V 50Hz | AC 380V 50Hz | AC 380V 50Hz | AC 380V 50Hz |
| Clamping steel plate thickness | 6-40mm | 6-60mm | 6-60mm | 6-60mm |
| Processing steel plate length | ＞300mm | ＞300mm | ＞300mm | ＞300mm |
| Height of worktable | 820-860mm | 820-860mm | 700-760mm | 820-860mm |
