Product Details:
Payment & Shipping Terms:
|
| Power Supply Voltage: | AC 380V 50Hz | Total Power: | 6520W |
|---|---|---|---|
| Spindle Speed: | 750-1440 R/min | Feed Speed: | 0-1500r/min |
| Bevel Width: | 0-70mm | Single Bevel Width: | 0-20mm |
| Bevel Angle: | 0°- +- 60° | Processing Material: | Carbon Steel, Stainless Steel, Aluminum Alloy, Copper, Composite Board |
| High Light: | Automatic Traveling Plate Edge Milling Machine,1500r/Min Feed Plate Edge Milling Machine,SS Plate Edge Milling Machine |
||
Fully automatic traveling steel plate milling machine capable of up and
down beveling
Product performance

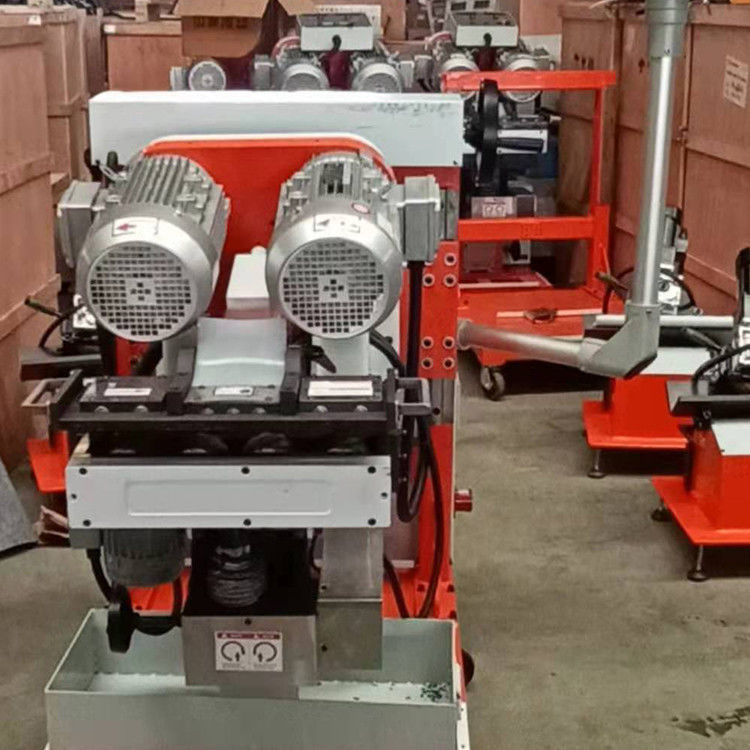

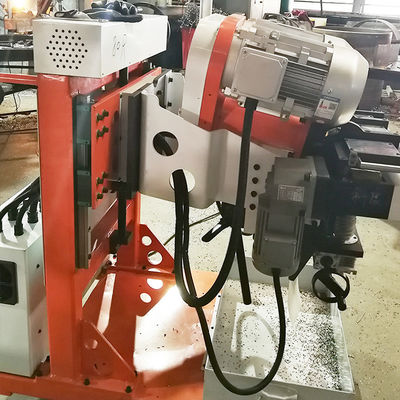

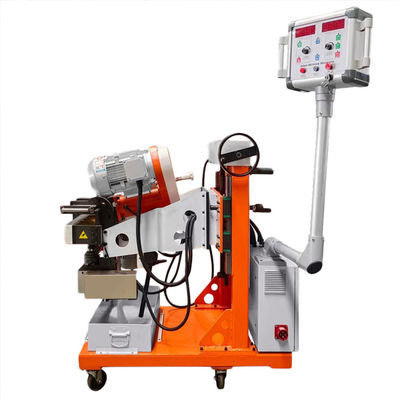

The PB-80R edge milling machine has the characteristics of small size, light weight, convenient movement and
simple operation.The machine can bevel the steel plate up and down without turning the plate. It is suitable for the
use of large thick plates, saving timeand effort. The bevel angle can be adjusted arbitrarily from 0° to plus or minus
60°, equipped with dual motors, with strong power and high efficiency.
Specification
| Power supply voltage | AC 380V 50Hz |
| Total power | 6520W |
| Spindle speed | 750-1440r/min |
| Feed speed | 0-1500r/min |
| Bevel width | 0-70mm |
| Single bevel width | 0-20mm |
| Bevel angle | 0°to plus or minus 60° |
| Clamping plate thickness | 6-80mm |
| Clamping board width | >100mm |
| Clamping plate length | >300mm |
| Working heightWorking height | 820-860mm |
| weight | 300kg |
| a | w |
| 0° | 60mm |
| 30° | 68mm |
| 37.5° | 70mm |
| 45° | 50mm |
| 60° | 45mm |
Product features
1.No smoke or spark, no change to processing material rationality
2.Automatic feed, automatic walking, without manual assistance
3.Slope surface is smooth, can be welded directly after processing, with high finish
Product SHOW
Product Details section
Bevel type
Engineering case
Applicable materials
Exhibition display
Please contact us if you are interested in our products.
