Product Details:
Payment & Shipping Terms:
|
| Capacity (ID Mm): | Φ65-159mm | Wall Thickness: | Less Than 20mm |
|---|---|---|---|
| Rotation Speed: | 35r/min | Powe Supply: | 0.8-1.0Mpa |
| Air Consumption: | 1000-2000L/min | ||
| High Light: | Internal Expansion Pneumatic Pipe Beveler,ID 159mm Pneumatic Pipe Beveler,Pneumatic Pipe Beveler 35r/Min |
||

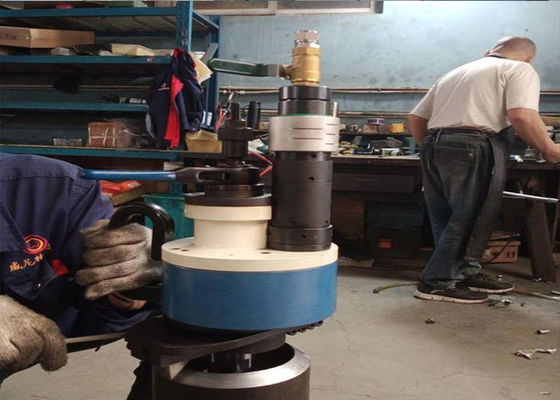

ISP-159 Pneumatic Pipe Chamfering Machine With Factory Price
1. Lighter weight,minimal radial space,Easy to operate.
2. A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
3. Driveing Type:Electric-ISE,Pneumatic-ISP.
4. Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
5. Angle:Beveling angle as per your required.
Order Guide:
Before you place order to us, please let us know the following information
- Choose the right Model
- Confirm your electric power supply ( Voltage, frequency and phase)
- Confirm the beveling angel required
- Confirm the welding joint required (U, V, Double V or Compound preparation)
- Advise your pipe material ( Carbon steel, stainless steel or others)
Other special demands about machine:
- The spare parts needed
- If the pipe wall thickness more than 30mm, inform us in advance (Important)!
| Model | Working Range(ID/OD) | Wall Thickness(mm) | Rotation Speed(r/min) | |
| ISP-30 | Φ16-28 | Φ19-38 | ≤15 | 60 |
| ISP-80 | Φ28-76 | Φ32-89 | ≤15 | 55 |
| ISP-120 | Φ40-110 | Φ48-120 | ≤15 | 38 |
| ISP-159 | Φ65-159 | Φ72-168 | ≤20 | 35 |
| ISP-252-1 | Φ80-240 | Φ90-273 | ≤20 | 16 |
| ISP-252-2 | Φ80-240 | ≤75 | 16 | |
| ISP-352-1 | Φ150-330 | Φ160-356 | ≤20 | 14 |
| ISP-352-2 | Φ150-330 | ≤75 | 14 | |
| ISP-426-1 | Φ250-410 | Φ260-430 | ≤20 | 12 |
| ISP-426-2 | Φ250-410 | ≤75 | 12 | |
| ISP-630-1 | Φ300-600 | Φ320-630 | ≤20 | 10 |
| ISP-630-2 | Φ300-600 | ≤75 | 10 | |
| ISP-850-1 | Φ590-830 | Φ610-850 | ≤20 | 9 |
| ISP-850-2 | Φ590-830 | ≤75 | 9 |
|
