Product Details:
Payment & Shipping Terms:
|
| Thickness: | 6-40mm | Angle: | 10-60degree |
|---|---|---|---|
| Driven: | Electric | Package: | Wooden Case |
| Bevel Width: | 1-45mm | Net Weight: | 250kgs |
| Work Table Height: | 820-860mm | ||
| High Light: | 40mm Automatic Plate Milling Machine,Plate Milling Machine 3400W,Anti Corrosion Plate Milling Machine |
||
PB-60 Automatic Plate Milling Machine With High Quality
The Machine bevel the steel, plate, stainless steel and aluminum automatically, which have big difference with milling machine in the market. We provide customer stable products.
The PB-60 type milling machine:
1. Machine parts:Anti-corrosion,hardening and tempering,abrasion treatment;
2. Welded parts: Stress relief treatment, deburring treatment, high temperature paint treatment;
3. More safe: The Control box is separate from the Electrical box, high voltage power supply do not contact with operation interface.
Specification
| Power Supply | AC 380V 50HZ | Bevel Width | 1-45mm |
| Total Power | 3400W | Cutter Qty | 5/6Pcs |
| Clamp Thickness | 6-40mm | Net Weight | 250Kgs |
| Bevel Angle | 10-60deg | Gross Weight | 280Kgs |

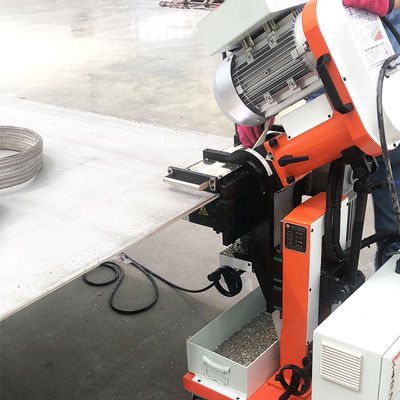

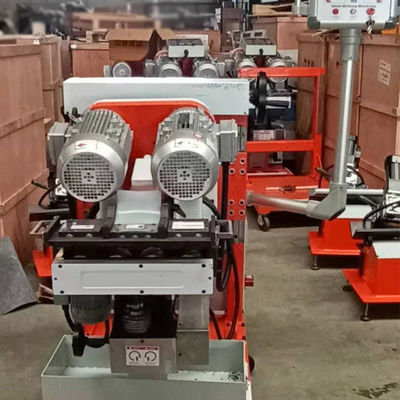

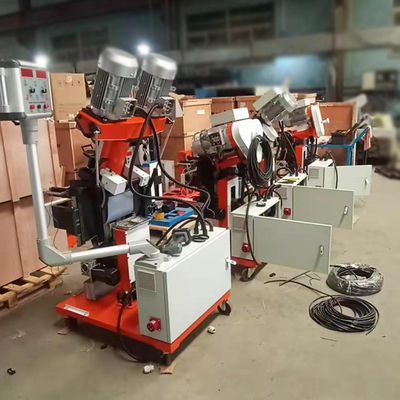

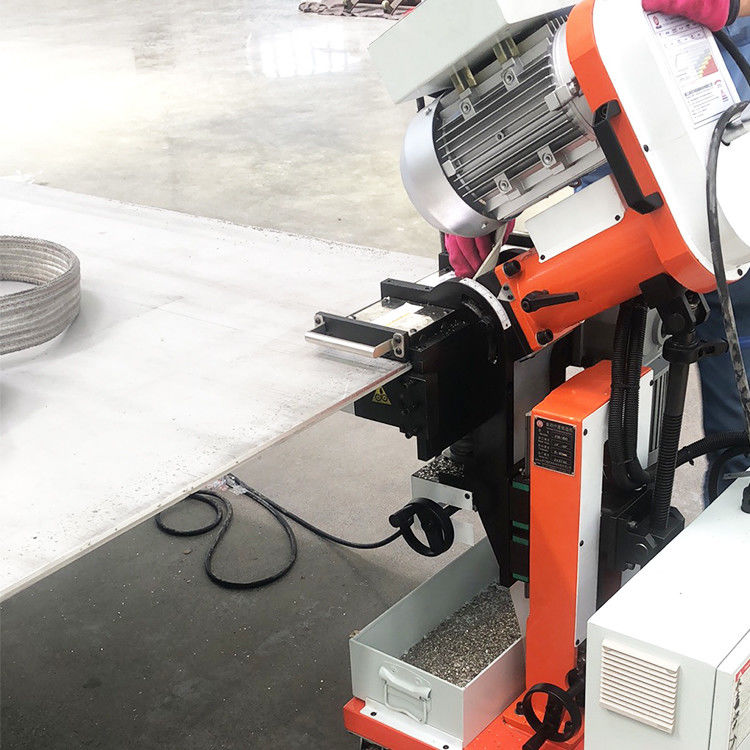

Processing Pictures
