Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Maximum Milling Width: | 1-15mm（adjustable） | Milling Angle: | 30°- 60°（adjustable） |
|---|---|---|---|
| Voltage: | 380V(220v,1PH) | Frequency: | 50Hz |
| Power: | 1.1KW | Speed: | 2870r/min |
| High Light: | High Efficiency Plate Beveling Machine,Plate Beveling Machine 1.1KW,Plate Beveling Machine 2870r/Min |
||
PBM-15 groove machine is specially designed for plate groove and chamfer,and it is a hand-propelled groove processing tool.
It is suitable for chamfering metal plate and groove processing before welding.
Light weight(compared with similar products),small vibration,easy to operate,safe and reliable.
Main Features
1. Cold Processed, No spark, Will not affect the material of plate.
2. Compact Structure, Light weight, Easy to carry
3. Voltage can be choose (220V / 380V)
4. Smooth slope, Surface finish can be as high as Ra3.2- Ra6.3.
5. Bevel angle and bevel depth can be adjustable, High Precision
6. Small working radius, Suitable for any working space,
fast beveling and deburring,High efficiency.
7. Equipped with CNC blades, low consumables.
8. Bevel type: V, Y, X,K etc.

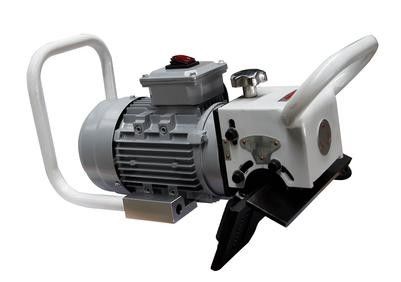

Product show
|
|
AC 1PH 220V 50HZ AC 3PH 380V 50HZ |
| Frequency | 50Hz |
| Total P ower | 1100W |
| Clamp Thickness | No Limited |
| Bevel Angle | 30°- 60° |
| Rotation Speed | 2870r/min |
| Bevel Width | 1-15mm |
| Tool Bit Qty | 12Pcs |
| Net Weight | 18kgs |
| Gross Weight | 28kgs |
| Process Material | CS,SS,Aluminum Alloy Bronze etc |
Contact Person: Maxine
Tel: +8613705881770
