Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Motor: | Electric | Motor Brand: | Metabo |
|---|---|---|---|
| Model: | ISO-63C | Working Range: | Φ28-63mm |
| Work Thickness: | Less Than 12mm | Clamping Method: | Two-way Clamping |
| High Light: | Auto Feed Electric Pipe Beveling Machine,OD Mounted Electric Pipe Beveling Machine,63mm Electric Pipe Beveling Machine |
||

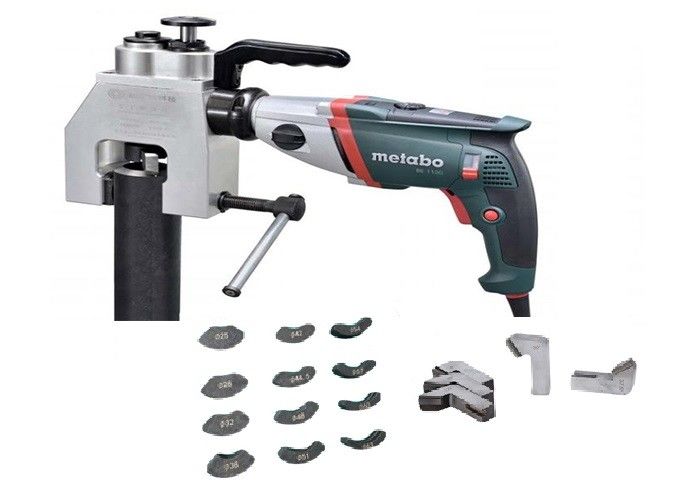

High Speed OD-Mounted Auto-Feed Pipe Beveling Machine
Main Performance
Auto feed pipe facing machine was designed for the end beveling of narrow working site and small diameter pipe. OD mounted on the pipe, one clamping block just fit one size pipe, secured clamping automatic feeding, easy to operate. It was widely used in water wall,fins, boiler economizer, superheater, reheater, power plants and other industries, the single pipe and exhaust pipe facing and beveling.
Technical Parameter
| Model | Working range | Wall Thickness | Clamping method | Accessory pad |
| ISO-63C | Φ28-63mm | ≤12mm | Two-way clamping | 28.32.38.42.45.51.54.57.60.63 |
| ISO-76C | Φ42-76mm | ≤12mm | Two-way clamping | 42.45.51.54.57.60.63.68.76 |
| ISO-89C | Φ63-89mm | ≤12mm | Two-way clamping | 63.68.76.83.89 |
| ISO-114C | Φ76-114mm | ≤12mm | Two-way clamping | 76.83.89.95.102.108.114 |
Production show
Contact Person: Maxine
Tel: +8613705881770
