Product Details:
Payment & Shipping Terms:
|
| Power: | AC 380V 50HZ | Total: | 3400w |
|---|---|---|---|
| Clamp Thickness: | 6-40mm | Single Bevel With: | 1-15mm |
| Bevel With: | 1-45mm | Clamp With: | >100mm |
| High Light: | 50HZ Plate Edge Milling Machine,Automatic Plate Edge Beveling Machine,PB-60 Plate Beveling Tool |
||

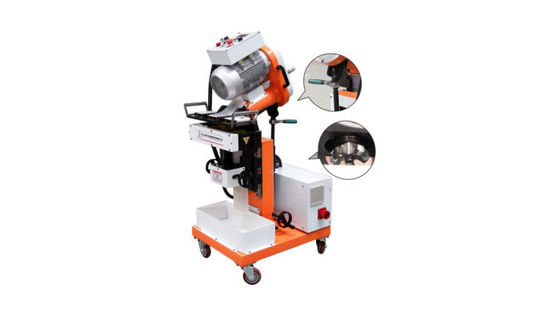

The PB-60 edge milling machine convenient movement and simple operation.
The finish of the groove is as high as Ra3.2-6.3.It is suitable for small factories.
The miling machine is equipped with commonly used CNC blades to make the customers use the cost more cheaply.
1. Cold processed, No sparks, Will not affect the material of plate.
2. Automatic feed, Automatic Marching , High efficiency, One person can operate multiple devices at the same time.
3. Smooth slope, Surface finish can be as high as Ra3.2- Ra6.3.
4. Numerical control display screen, Simple operation, Bevel speed can be adjustable, High precision.
5. Equipped with CNC blades , Low consumables.
6. Bevel Type:V,Y, K,X etc.
7. Can process carbon steel, stainless steel, alloy steel, titanium, and composite plates etc.
Specification
| Voltage | AC 3PH 380V 50HZ |
| Total power | 3400W |
| Spindle speed | 1050r/min |
| Feed speed | 0-1500mm/min |
| bevel width | 1-45mm |
| single bevel width | 1-15mm |
| bevel angle | 10*-60° |
| Clamp thickness | 6-40mm |
| Plate width | > 100mm |
| Plate length | >300mm |
| Worktable height | 820-860mm |
| N.W | 250KGS |
| Process material | CS,SS,Aluminum,bronze,compound plate |
* Non-standard machines are aviable according to customer's requirement.
| Name | Unit | Qty |
| Machine | Set | 1 |
| Industrial Socket | Pcs | 1 |
| Oil Gun | Pcs | 1 |
| Sprinkling Can | Pcs | 1 |
| Bevel Blade | Pcs | 6 |
| Blade screw | Pcs | 6 |
| Screwdriver | Pcs | 1 |
| T5 Wrench | Pcs | 1 |
| M17 Wrench | Pcs | 1 |
| Allen wrench | Set | 1 |
| Ratchet wrench | Pcs | 1 |
