Product Details:
Payment & Shipping Terms:
|
| Power Supply: | 220-240V 50-60Hz | Driven: | Electric |
|---|---|---|---|
| Thickness: | Less Than 15 (Standard) | Speed Rotation: | 50r/min |
| Working WAY: | No Spark,Cold Working | Fix Way: | Inside Mounted |
| Motor Power: | 1600W | Working Range: | 18-30mm(ID-OD) |
| High Light: | electric pipe beveler,tube facing machine |
||

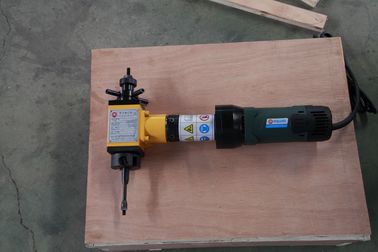

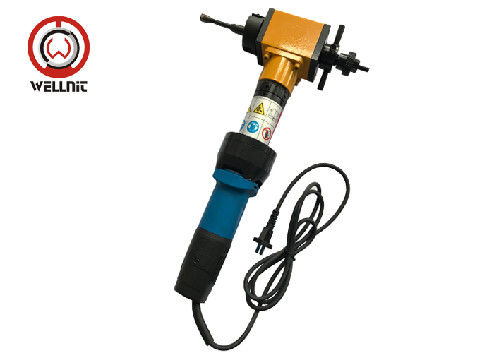

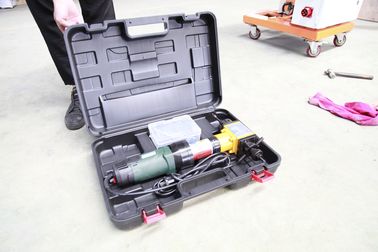

Electric Driven Automatic Pipe Beveling Machine Inside Mounted Pipe Beveller
This series is ID-Mounted pipe beveling machine,with the following advantages:Easy operation, light weight and convenient to carry. The ID-Mounted pipe beveling machines use expanding mandrel to holding itself against on the internal surface of pipe via the open end of pipe. A draw nut is tightened,Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.It's can work with various material pipe,beveling angle as per your required.
advantages:
| ISE-30 Beveling Machine | |
| Voltage | 220-240V |
| Frequency | 50-60Hz |
| Power | 1600W |
| Wall Thickness | ≦15 |
| Working Range | 18-28mm |
| Rotation Speed | 50r/min |
| Net Weight | 16kg |
Non-standard machines are available according to customers’requirement.
