Product Details:
Payment & Shipping Terms:
|
| Electric Supply: | 220-240V 50-60Hz | Driven Way: | Electric |
|---|---|---|---|
| Thick Of Tube: | Less Than 15 (Standard) | Speed Of Circle: | 14r/min |
| Working Methods: | No Spark,Cold Working | Fix Methods: | Inside Mounted |
| Electric Power: | 1600W | Working Range: | 150-356mm(ID-OD) |
| High Light: | electric pipe beveler,portable pipe beveler |
||

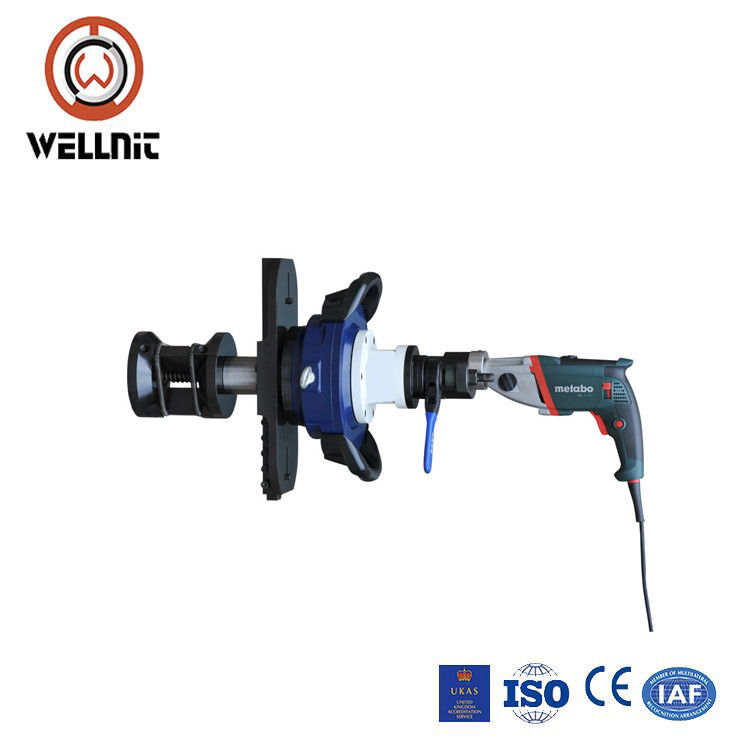

Electric Driven Stainless Steel Pipe Beveling Machine , Steel Pipe Beveler
Main performance of the product
The machine is suitable for cutting and beveling procession of pressure vessel and steam generator in different type and size, even for treatment of carbon steel, stainless steel and alloys. Cold cutting procession does not affect the quality of the pipe materials.This series is ID-Mounted pipe beveling machine,with the following advantages:Easy operation, light weight and convenient to carry. The ID-Mounted pipe beveling machines use expanding mandrel to holding itself against on the internal surface of pipe via the open end of pipe. A draw nut is tightened,Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.It's can work with various material pipe,beveling angle as per your required.

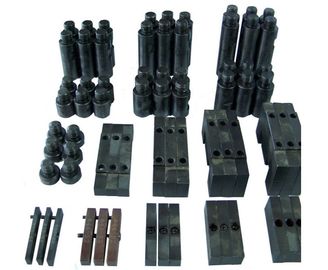

The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe. A draw nut is tightened, which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the material from the end, a bevel is produced which conforms to the angle predetermined by the angle ground into the bit. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.
Spcification:
Model |
Working Range (ID/OD) |
Wall Thickness |
Rotation Speed |
|
ISM-30 |
Φ16-28 |
Φ19-38 | ≤15 |
50r/min |
ISM-80 |
Φ28-76 |
Φ32-89 | ≤15 |
55r/min |
ISM-120 |
Φ40-110 |
Φ48-120 |
≤15 |
30r/min |
ISM-159 |
Φ65-159 |
Φ72-168 | ≤20 |
35r/min |
ISM-252-1 |
Φ80-240 |
Φ90-273 | ≤20 |
16r/min |
ISM-252-2 |
≤75 |
16r/min |
||
ISM-352-1 |
Φ150-330 |
Φ160-356 |
≤20 |
14r/min |
ISM-352-2 |
≤75 |
14r/min |
||
ISM-426-1 |
Φ250-410 |
Φ260-430 |
≤20 |
12r/min |
ISM-426-2 |
≤75 |
12r/min |
||
ISM-630-1 |
Φ300-600 |
Φ320-630 |
≤20 |
10r/min |
ISM-630-2 |
≤75 |
10r/min |
||
ISM-850-1 |
Φ590-830 |
Φ610-850 |
≤20 |
9r/min |
ISM-850-2 |
≤75 |
9r/min |
||
Non-standard machines are available according to customers’requirement.
