Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Power Supply: | AC 380V 50Hz | Motor Power: | 1100W |
|---|---|---|---|
| Bevel Angle: | 30 Degree | Bevel Width: | Less Than 15mm |
| Pipe Working Range: | Greater Than 133mm | ||
| High Light: | 30 Degree Plate Beveling Machine,1.1KW Plate Beveling Machine,2000r/Min Plate Beveling Machine |
||

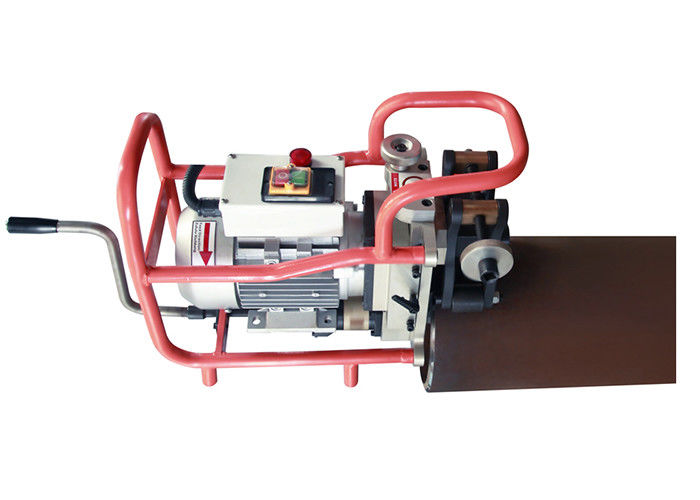

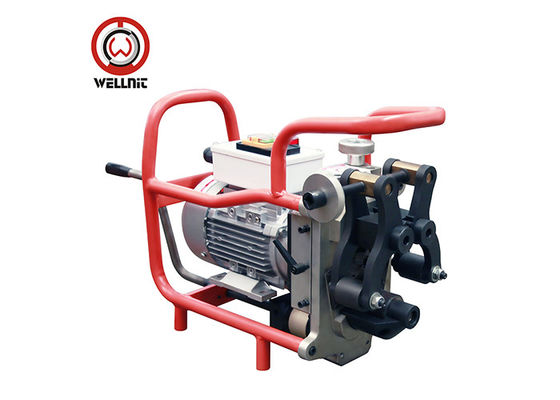

Portable Multifuntion no limited plate and pipe beveling machine
Performance of products

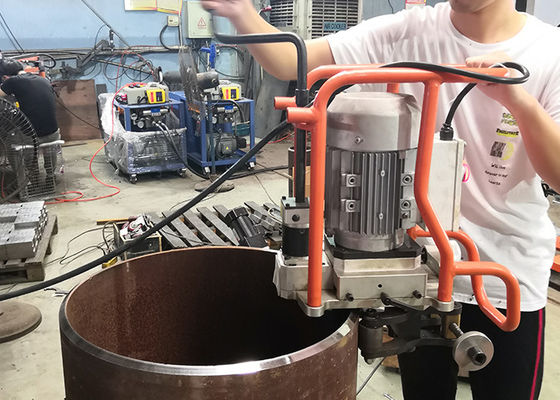

This series of products are multifunction manual plate / pipe beveling machine. It not only can process pipe , also can process plate.Compact design make machine small dimension and light weight, easy to carry. The machine working range no limited , if pipe size more than 133mm , machine can process inside bevel or outside bevel , High efficiency! Save many cost!
Function of Products
Machine Specification
| Model | PBM-20 |
| Voltage | 380V |
| Frequency | 50Hz |
| Motor Power | 1.1KW |
| Working Range | Pipe size more than 133mm |
| Wall thickness | Less than 15mm |
| Bevel Width | Less than 15mm |
| Bevel Angle | 30 degree |
| Rotation Speed | 2000r/min |
| Tool Quantity | 4pcs |
| Net Weight | 25KG |
| Process Material | Carbon Steel , Stainless Steel etc |
| Machine Dimension | 485*404*286mm |
Bevel Surface
Order Guide
