Product Details:
Payment & Shipping Terms:
|
| Voltage: | AC 3PH380V 50hZ | Total Power: | 1100W |
|---|---|---|---|
| Clamp Thickness: | 5-15mm | Rotation Speed: | 2000r/min |
| Gross Weight: | 30kg | Warranty: | 1 Year |
| High Light: | Multifunctional Steel Plate Beveling Machine,Hand Operated Plate Beveling Machine,2000r/Min Plate Beveling Machine |
||

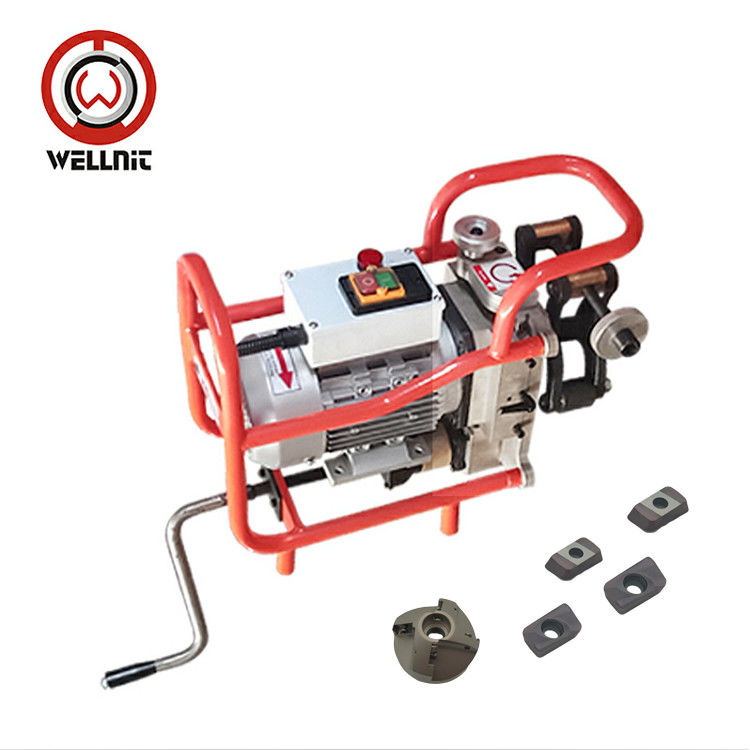

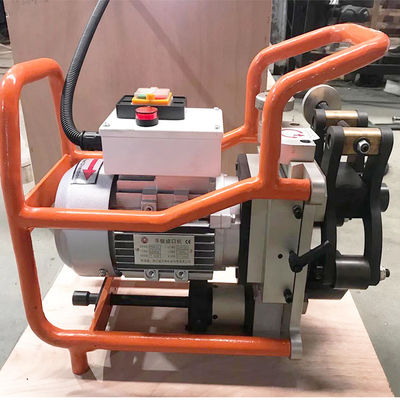

Portable hand-operated multifunctional steel plate beveling machine and pipe chamfering machine
Product Introduction
The multi-functional steel plate milling machine adopts cold working method, no sparks, will not affect the material, and the working range is unlimited (pipes above 133mm can be processed). The machine is compact in structure, light in weight, easy to carry, milling processing, smooth slope, and surface finish can be as high as Ra3.2-Ra6.3. Small working radius, suitable for any working space, fast beveling, deburring, equipped with CNC milling blades, CNC CNC blades, low consumables. It can process linear plates, round pipes, and bevel forms: V, Y, X, etc.
PBM-20 product information
| Voltage | AC 3PH 380V 50Hz |
| Total Power | 1100W |
| Clamp Thickness | 5-15MM |
| Bevel Angle | 30° 37.5° 45° |
| Rotation Speed | 2000r/min |
| Pipe Min ID Size | 133mm |
| Bevel width | 1-15mm |
| Tool Bit Qty | 4 Pcs |
| Net Weight | 25kg |
| Gross Weight | 30kg |
| Machine Dimension | 485*405*290mm |
| Processing materials | Carbon steel,stainless steel , Aluminum alloy ,Composite plate |
