Product Details:
Payment & Shipping Terms:
|
| Power:: | 220V/50HZ | Motor Power:: | 1.4-2kw |
|---|---|---|---|
| Rotation Speed:: | 30r/min | Warranty Period:: | 1 Years |
| Package: | Plywood Box | Net Weight: | 10-220kg |
| High Light: | Pneumatic Cold Beveling Machine,Welding Cold Beveling Machine,30r/Min Cold Beveling Machine |
||
pipe beveling machine electri or pneumatic cold beveling

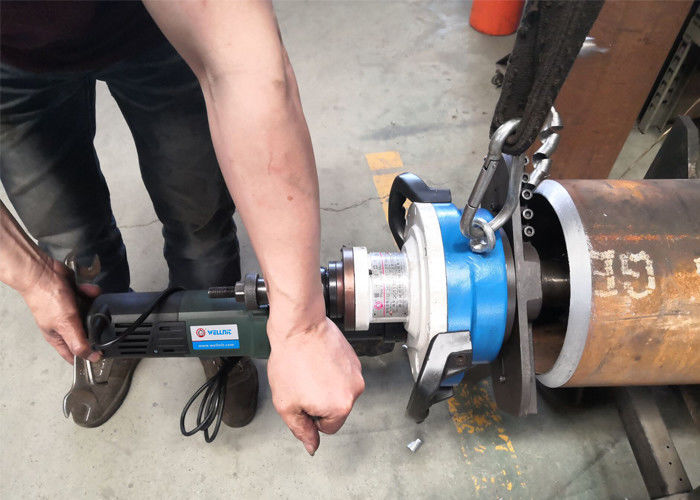

The internal expansion pipe beveling machine can bevel the end faces of various specifications of pipes, and the installation and operation are very simple. The whole machine is ingeniously designed. It is positioned and installed on the inner wall of the pipeline through a mechanical tensioning mechanism. It is a convenient pipe bevel processing tool and a mobile pipe end bevel small machine tool, suitable for various grades of carbon steel, Stainless steel, alloy steel and other metal materials and special hard engineering material bevel processing are widely used in pipeline installation projects and pipeline repair operations in petroleum, chemical, natural gas, food, boilers, pharmaceuticals, nuclear power, venue construction and other industries.The internal expansion pipe beveling machine can bevel the end faces of various specifications of pipes, and the installation and operation are very simple. The whole machine is ingeniously designed. It is positioned and installed on the inner wall of the pipeline through a mechanical tensioning mechanism. It is a convenient pipe bevel processing tool and a mobile pipe end bevel small machine tool, suitable for various grades of carbon steel, Stainless steel, alloy steel and other metal materials and special hard engineering material bevel processing are widely used in pipeline installation projects and pipeline repair operations in petroleum, chemical, natural gas, food, boilers, pharmaceuticals, nuclear power, venue construction and other industries.
The advantages of Machine:
Machine parameters:
| Model | ISE-30 | ISE-80 | ISE-120 | ISE-159 |
| Working Range(I.D) | 18-28mm | 28-76mm | 40-120mm | 65-159mm |
| Rotation Speed | 50r/min | 55r/min | 30r/min | 35r/min |
| Net Weight | 10KG | 10KG | 18KG | 25KG |
| Wall Thickness | <15mm | <15mm | <15mm | <20mm |
| Model | ISE-252-1 | ISE-352-1 | ISE-426-1 | ISE-630 |
| Working Range(I.D) | 80-240mm | 150-330mm | 250-426mm | 300-600mm |
| Rotation Speed | 16r/min | 14r/min | 12r/min | 10r/min |
| Net Weight | 35KG | 52KG | 90KG | 98KG |
| Wall Thickness | <20mm | <20mm | <20mm | <20mm |
| Driven:Electric,Pneumatic | ||||
we are the manufacturer of machine,we can accept customization.
