Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Features: | High Speed, Low Energy Consumption | Processing Method: | Cold Processing |
|---|---|---|---|
| Warranty Period: | 1 Year | Power: | 1.5-2KW |
| Voltage Electric Frequency: | 220V 50Hz | ||
| High Light: | Chamfering Pipe Cutting Beveling Machine,2KW Pipe Cutting Beveling Machine,Cold Processing Cutting Beveling Machine |
||
Electric pipe beveling machine Outer clamp stainless steel pipe chamfering and cutting one automatic cutting
Technical Parameters
| model | specification | Processing outer diameter(mm) | Cutting bevel wall thickness | Cutter speed | |
| ordinary | Overload | ||||
| electric OCE | 89 | 25-89 | ≤30 | - | 42r/min |
| 159 | 65-159 | ≤30 | - | 20 | |
| 168 | 50-168 | ≤30 | - | 18 | |
| 230 | 80-230 | ≤30 | - | 15 | |
| 275 | 125-275 | ≤30 | ≤110 | 14 | |
| pneumatic OCP | 305 | 150-305 | ≤30 | ≤110 | 13 |
| 325 | 168-325 | ≤30 | ≤110 | 13 | |
| 377 | 219-377 | ≤30 | ≤110 | 12 | |
| 426 | 273-426 | ≤30 | ≤110 | 12 | |
| Hydraulic OCH | 457 | 300-457 | ≤30 | ≤110 | 12 |
| 508 | 355-508 | ≤30 | ≤110 | 12 | |
| 560 | 400-560 | ≤30 | ≤110 | 12 | |
| 610 | 457-610 | ≤30 | ≤110 | 11 | |
| 630 | 480-630 | ≤30 | ≤110 | 11 | |
| CNC OCS | 660 | 508-660 | ≤30 | ≤110 | 11 |
| 715 | 560-715 | ≤30 | ≤110 | 11 | |
| 762 | 600-762 | ≤30 | ≤110 | 11 | |
| 830 | 660-830 | ≤30 | ≤110 | 10 | |
| Metaibao OCM | 914 | 762-914 | ≤30 | ≤110 | 10 |
| 1066 | 914-1066 | ≤30 | ≤110 | 10 | |
| 1230 | 1066-1230 | ≤30 | ≤110 | 10 | |
| 1430 | 1230-1430 | ≤30 | ≤110 | 8 | |

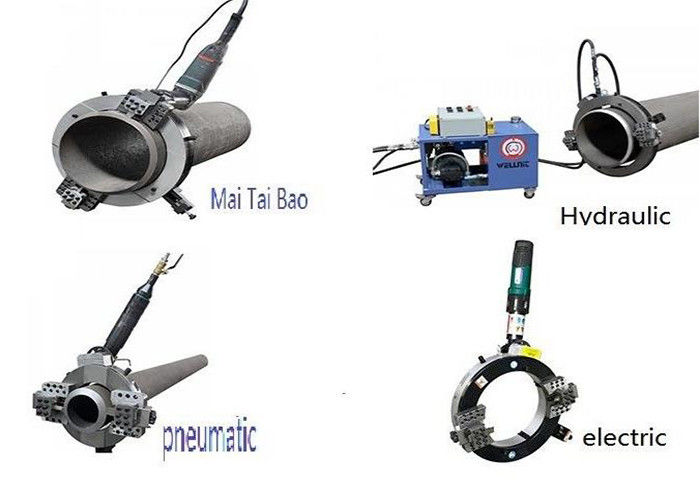

Products Show
electric
This machine uses AC 220V high-performance motor as power
Motor frequency is 50HZ
The allowable current is 6A, and the motor power is 1.52KW.
This machine is a portable externally installed cutting beveling machine device
Easy to operate
Features such as small radial headroom
pneumatic
The machine is driven by an air motor
Need air working pressure 0.8-1.0MPa air source
Air consumption 1000-2000L/min
Hydraulic
Suitable for batches of large pipes with wall thickness ≤90
Cutting and beveling
Driven by hydraulic motor, rated voltage 380V
Phase power rated pressure 10MPa, flow rate 30L/Min
Mai Taibao
Imported motor
High processing efficiency, adjustable speed
The performance is more stable, with overload protection.
