1300W Electric Pipe Cutting And Beveling Machine 120r/Min

1300W Electric Pipe Cutting And Beveling Machine 120r/Min
1300W Electric Pipe Cutting And Beveling Machine 120r/Min
video play

Large Image :  1300W Electric Pipe Cutting And Beveling Machine 120r/Min

Product Details:
Place of Origin: CHINA
Brand Name: WELLNIT
Certification: ISO,CE
Model Number: SCB-114
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 5-8days
Payment Terms: L/C, T/T
Supply Ability: 20Sets per day
Contact Now
Detailed Product Description
Voltage:: 220-240V Automation:: Automatic
Rated Power:: 1300W Thickness:: ≤12mm
Working Range:: 63-114mm Rotation Speed:: 30-120r/min
Material:: Metal
High Light:

1300W Electric Pipe Beveling Machine

,

Pipe Cutting Beveling Machine 120r/Min

,

12mm Pipe Cutting Beveling Machine

Product Description
Metabo Cam-type Portable Hand Pipe Beveling Cutting Machine
This series adopt high strength and precision structure , apply for cut and bevel work for different pipe , especially for batch,working of cutting and beveling , get the high efficiency.

Model
SCB-63,SCB-114
Working range
Dia. 14~63mm,Dia. 63-114mm
Thickness
≤12mm
Speed
30~120r/min
Weight
13 Kgs,16 Kgs

Feature:
* Drive Options: Pneumatic, Hydraulic, and Electric
* Air requirement: 1500L-3000L Per minute 0.6/0.7Mpa
* Hydraulic requirement: 2-60L per minute 12.5Mpa
* Electric requirement:220-240V 1PH 50/60HZ
* Feed mode: Star wheel, automatically
* Feed rate: Fixed 0.08mm per circle
* Packaging: Plywood case.

  • Description of application effect

* Adjustable speed
* Self-centering , no need adjust the concentricity and perpendicularity manually.
* Easy set-up , operation and maintain
* Cutting and beveling finished at the same time , high working effective
* Cold working , no spark , won't make the material affected

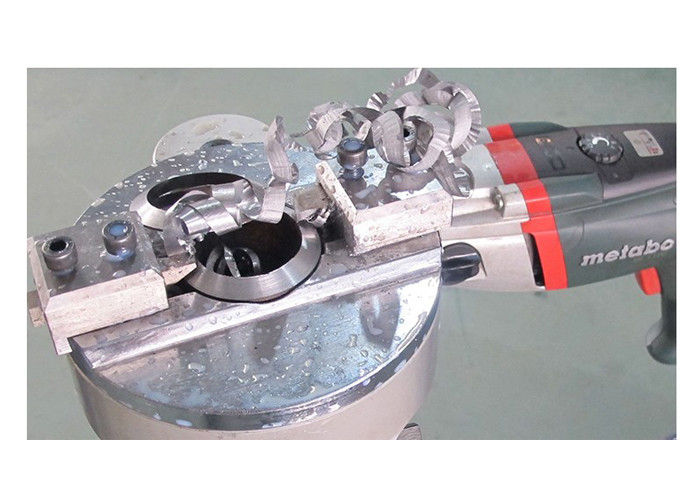

Detailed Images
Cam-type self-centering cutting and beveling machine used for pipe high speed cutting and beveling suit to small size pipes.This series machine adopts METABO motor, main applied in the field of power plant pipeline installation, chemical
industry,shipbuilding, especially pipeline prefabrication and low clearance on site working, such as maintain thermal power
auxiliary equipment, boiler pipe valve.

Features



1) Compact structure, designed to bevel the pipe in the narrow space.

2) Pipe Out-mounted , self centering, secured clamping, easy to operate.

3) Aluminum body, light weight, suitable for working aloft.

4) High quality beveling tool, can process different grades of carbon steels, alloyed steel, stainless steel and so on.

5) More choice for the driven model, electric or pneumatic, widely application.

6) Using fields: Pipe end beveling process of water pipe, heater boiler and thermal power plant



Technical Parameter



Electric: Driven by low-energy consumption electric motor 110V or 220V optional, 50-60Hz

Pneumatic: Driven by pneumatic motor, Air working pressure: 0.6-0.8Mpa, 1300W,Air Consuming flux:950-1500L/min

1300W Electric Pipe Cutting And Beveling Machine 120r/Min 0
1300W Electric Pipe Cutting And Beveling Machine 120r/Min 1
