Product Details:
Payment & Shipping Terms:
|
| Voltage: | 220-240V | Frequency: | 50 / 60HZ |
|---|---|---|---|
| Bevel Wall Thickness: | ≤12mm | Warranty Period: | 1Year |
| Power: | 2200W | ||
| High Light: | OD 28mm Electric Pipe Beveling Machine,External Clamp Cutting Beveling Machine,260r/Min Electric Pipe Beveling Machine |
||

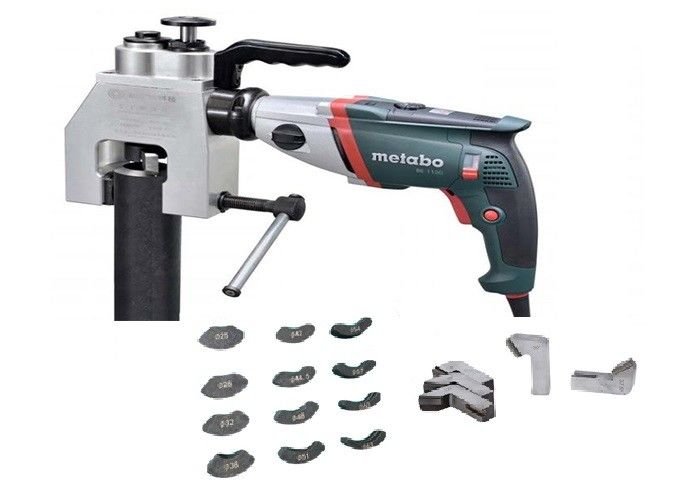

External clamp type pipe beveling machine external clamp type electric pipe chamfering machine stainless steel grinder
product description
Aiming at the narrow space, the machine is a portable bevel processing equipment specially designed and developed for the
end beveling of small pipe diameter pipes. It is suitable for pipes with an outer diameter of Φ28～Φ114mm. It adopts an external
clamp type clamping device for precise positioning and removal. It is easy to install, equipped with imported motor, with superior
quality. The design of automatic advance and retreat knife greatly reduces labor intensity and increases the life of the machine.
This product is suitable for pipe bevel processing and on-site maintenance of professional equipment such as water wall
superheaters, reheaters, economizers, boilers, thermal power plants, etc., to meet the processing requirements of narrow working
space on site for pipeline maintenance and large maintenance batches.
Technical Parameters
| model | ISO-63C | ISO-76C | ISO-89C | OPC-89 |
|---|---|---|---|---|
| Processing range | φ28-63mm | φ42~76mm | φ63-89mm | φ76-114mm |
| Machinable wall thickness | ≤12mm | ≤12mm | ≤12mm | ≤12mm |
| Motor speed | 100-260r/min | 100-260r/min | 100-260r/min | 100-260r/min |
| Clamping method | Two-way clamping | Two-way clamping | Two-way clamping | Two-way clamping |
| Feed method | automatic | automatic | automatic | automatic |
| Bevel knife(30° Beveling knife 3) | With | |
| Explanatory book | With | |
| Certificate of conformity | With |
Product schematic
Tool display
Bevel range
Applicable materials
