Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Work Pressure: | 220-240V | Working Frequency: | 50*60Hz |
|---|---|---|---|
| Motor Power: | 1400W | Safety: | Soft Start |
| Host Weight: | 7KG | Number Of Blades: | 4 |
| High Light: | Multifunctional Electric Pipe Beveling Machine,4 Blades Pipe Beveling Machine,Soft Start Pipe Beveling Machine |
||
Overview

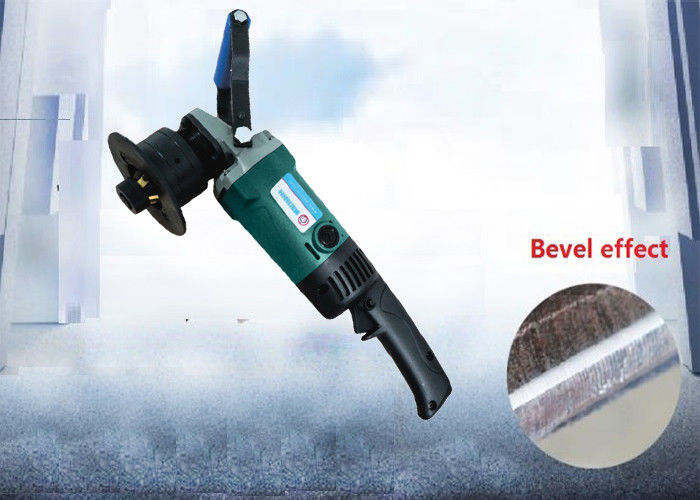

The PB-10 multi-function beveling machine is a manually operated electric tool. The machine is suitable for processing the bevel before welding
(it can be processed into K, V, X, Y type bevel), and can be used for bevel processing of the plate And the deburring of metal materials, etc. Its
versatility and flexibility can greatly improve work efficiency and make it an attractive device. The machine has a very compact structure and can be
operated in places with complex environments and difficult to process.
Product technical parameters
| Product number | PB-10 |
| Work pressure | 220-240V |
| working frequency | 50/60Hz |
| Motor Power | 1400w |
| Safety | Soft start |
| Machining speed | 400-800r/min |
| Bevel angle | 30°(Standard),37.5°, 45° |
| Slope width | 1-10mm(Q235) |
| Host weight | 7KG |
| Number of blades | 4 |
Products Show
Adjusting wheel
Adjust freely according to depth requirements to achieve satisfaction
With auxiliary handle
Convenient operation, humanized design effectively improves work efficiency
Carbide 4-blade blade
The wild-matched carbide 4-blade blade can be used multiple times and can process a variety of materials
Beveling machine small parts display
Product processing effect
