Product Details:
Payment & Shipping Terms:
|
| Model Number: | WFS/WFP | Specifications: | 610/1000/1650/2000/3000 |
|---|---|---|---|
| Installation Scope: | 50-2800mm | Tool Stroke: | 50mm/102mm |
| Rotation Angle Of Cutter Head: | +-30，+-360 | Warranty: | 1 Year |
| High Light: | Flange Electric Pipe Beveling Machine,42r/Min Cutting Pipe Beveling Machine,ISO9001 Electric Pipe Beveling Machine |
||
Flange end processing machine is a good helper for repairing flange surface
Product features
Flange end surface processing machine can process flange surface, sealing water line, flange inner hole, outer
circle and various forms of sealing surface (RF, RTJ, etc.)
The machine adopts the latest linear and ball screw technology, and is fixed in the middle of the pipe or flange by
the internal clamping method, making the operation easier and more convenient
Drive methods are: servo motor, pneumatic motor, hydraulic motor
Widely used in the maintenance of flange sealing surface, flange surface repair and processing of various metal materials such as cast iron, alloy structural steel, stainless steel, etc.
Technical parameter
| Model | WFS / WFP / WFH | ||||
| Specifications | 610 | 1000 | 1650 | 2000 | 3000 |
| Flange surface processing range | 50-610mm | 160-1000mm | 500-1650mm | 690-2200mm | 1150-3000mm |
| Installation scope | 50-508mm | 158-820,mm | 500-1500mm | 690-2000mm | 1120-2800mm |
| Tool stroke | 50mm | 102mm | 102mm | 102mm | 102mm |
| Rotation angle of cutter head | +-30° | +-30° | +-30° | +-360° | +-360° |
| Cutter speed | 0-42r/min | 0-33r/min | 0-22r/min | 0-20r/min | 3-12r/min |

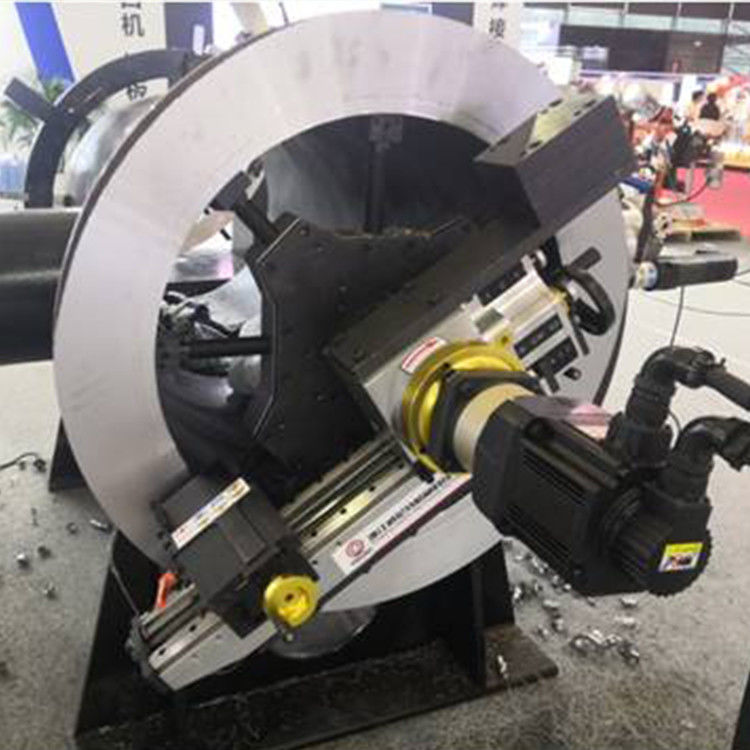

Product Show

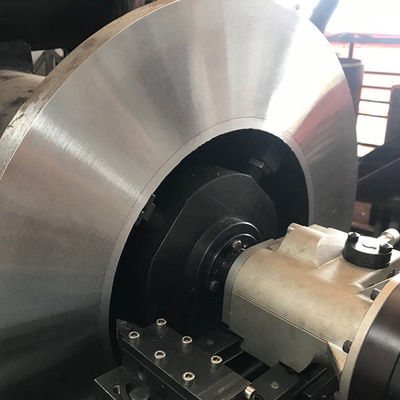

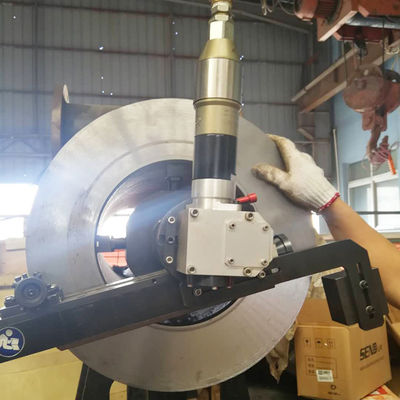

Engineering case
Product packaging
