Product Details:
Payment & Shipping Terms:
|
| Minimum Processing Range: | 28mm | Maximum Processing Range: | 76mm |
|---|---|---|---|
| Minimum Wall Thickness: | 2mm | Maximum Wall Thickness: | 15mm |
| Motor Power: | 1500w | Rotation Speed: | 55r/min |

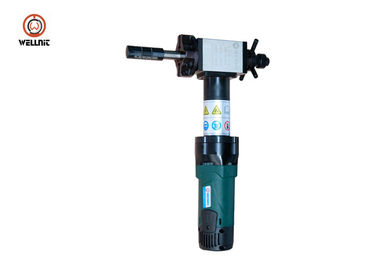

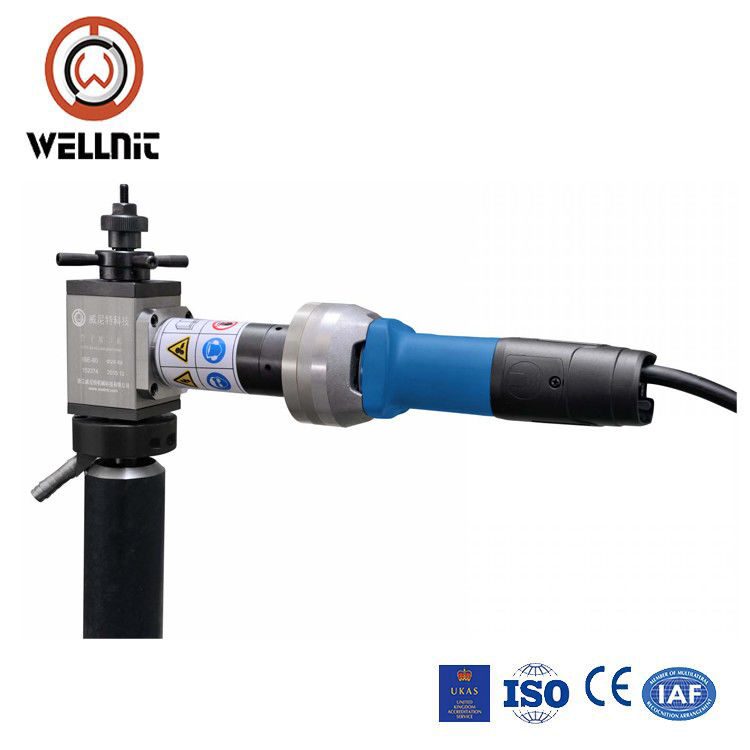

| High Light: | Handheld Electric Pipe Beveling Machine,Electric Pipe Beveling Machine 55r/Min,1500w Electric Pipe Beveling Machine |
||
Thet are widely used in the fields of petroleum,chemical,natural gas,power supply construction,boiler and nuclear power,such as the project of west gas transporting to east China
Electric-ISE Pneumatic-ISP Metabo-ISM
| Model | ISE-80 |
| Voltage | 220V |
| Frequency | 50/60 Hz |
| Motor Brand | Electric Motor |
| Power | 1500W |
| Working Range(I.D) | 28-76mm |
| Wall Thickness |
Greater than 1mm Less than 15mm |
| Rotation Speed | 55r/min |
| Driven | Electric |
| Name | Model | Unit | Qty |
| Machine | ISE-80 | Set | 1 |
| Expanding Block | NO.1-5 | Set | 5 |
| Facing Tool | 0° | Pcs | 1 |
| Beveling Tool | 30° | Pcs | 1 |
| Beveling Tool | 37.5° | Pcs | 1 |
| Allen wrench | / | Pcs | 2 |
| Hexagon wrench | / | Pcs | 1 |
| Screws | / | Pcs | 6 |
| screwdriver | Pcs | 1 | |
| spring | Pcs | 2 | |
| Instruction manual | Pcs | 1 |
