Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Motor Power: | 1.1-2.3kw | Drive Way: | SCB/SCP |
|---|---|---|---|
| Working Range: | φ14-φ114 | Processing Method: | Cold Processing |
| Function: | :pipe Cutting And Beveling | Thickness: | ≤12mm |
| High Light: | Chamfering Portable Pipe Beveling Tool,Self Centering Portable Pipe Beveling Tool,Cold Processing Portable Pipe Beveling Tool |
||

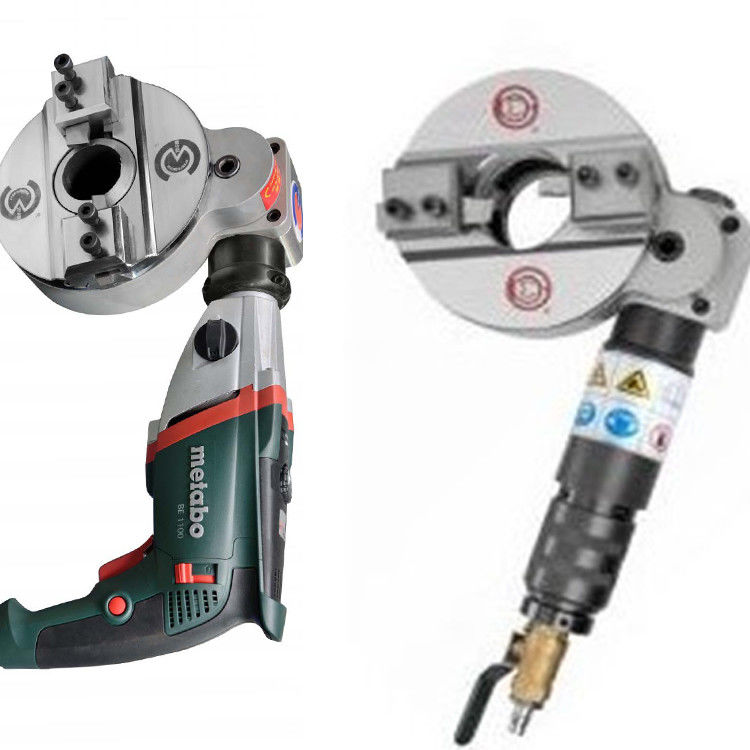

Cam type self-centering beveling machine stainless steel pipe pipe cutting machine breaking machine portable electric pipe machine.
Product performance

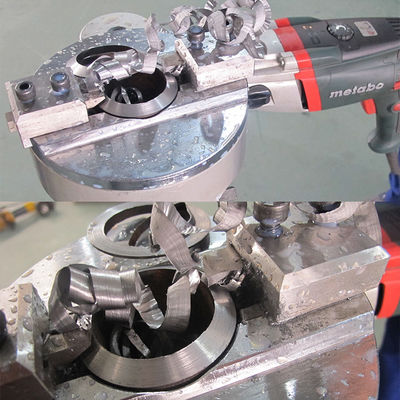

The cam-type self-centering beveling machine can perform bevel-only and cut-only processing on the pipe, which improves the processing efficiency of the product; the machine is light in weight, compact, and can be processed in a narrow space; the machine automatically feeds evenly, and the tool is used Longer life; imported aluminum motor, bevel speed can be adjusted according to your own needs, strong adaptability; pipe bevel processing, good surface quality, no burrs, widely used in petroleum, chemical, natural gas, power plants, nuclear Construction and installation of thin-walled pipes in industry; also a good helper for pipe cutting and bevel processing.
technical parameter
| Model | Spec | Working Range | Thickness | Speed | Weight |
| SCB/SCP | 63 | φ14-63mm | ≤12mm | 30-120r/min | 13kg |
| SCB/SCP | 114 | φ63-114mm | ≤12mm | 30-120r/min | 16kg |
Product schematic
