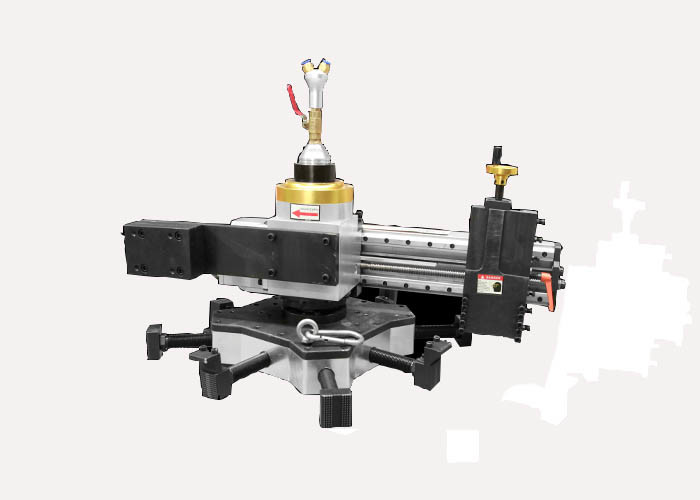

6400w Pipe ID Mounted Quick Flange Facing Tool Pneumatic Drive

ID Flange Facing Machine

An internally mounted flange facing machine for all types of flange facing, seal groove machining, weld preparation and counter boring.

Lightweight, precision construction to optimise on-site performance •Modular components make setup quick and easy •Latest linear technology–delivering a robust, reliable operation •Three speed continuous feed gearbox, for gramophone finish •Quick set adjustable clamping jaws, minimising set up time

On site flange facer mounted inside and outside the piep for stable and accurate machining.

WFP-1000 Flange Facing is an overall cost effective technique which allows you to face, bevel,and turn pipe,value and pump flange with ease . Which in turn helps to keep your plant running efficiently, safely and more environmentally friendly.

It gives machine shop accuracy , combined with ease of handing and portablity in the flange range .Spur gears engage directly on the drive ring, keep power requirements and losses to a minimum and allowing maximum torque at the cutting tool . When the machine is used in the vertical plane , balancing is greatly reduced.

Machine advantages:

1.Quick and Easy Setup & Removal

2.Separate mounting chuck.

3. All centering and leveling is done on the chuck.

4.Lightweight

• Body of machine weighs only 99 lbs (45 kg).

• Smallest mounting chuck weighs about 5 lbs (2.2 kg).

5.Safe and Quiet Operation

• Stationary feed rate selector.

• Machine is controlled without touching any moving parts.

• Exhaust air is routed through body of machine for increased muffling.

5.Simplified Operation

• Single selector switch for bidirectional radial feed or vertical downfeed.

• One wrench size for clamping jaws and body draw bolt.

6.Cuts Chamfers and Grooves

•7.Compound tool head and downfeed for cutting angles and grooves.

Typical applications:

• Piping system flanges

• Valve flanges and bonnet flanges

• Heat exchanger flanges

• Vessel flanges

• Flange faces on piping systems

• Pump housing flanges

• Weld preps

• Tube sheet bundles.

• Bearing mounting bases

• Final drive hubs

• Bull gear faces

• Manufacturing of mining equipment

• Slew rings

• Bearing mounting bases

• Crane pedestal flange.

Portable flange facing machine flange facer portable machine application:

Flange face machine

RTJ grooving surface remachining

Counterbore

Chamfer
