Product Details:
Payment & Shipping Terms:
|
| Facing Range: | 50-610mm | Machine Driven: | Pneumatic |
|---|---|---|---|
| Function: | Facing , Seal Groove , Water Line , RTJ Etc | Mounted Way: | Inside Install |
| High Light: | Inside Mounted Pneumatic Flange Facing Machine,RTJ Flange Facer Machine Pneumatic,610mm Pneumatic Flange Facing Machine |
||

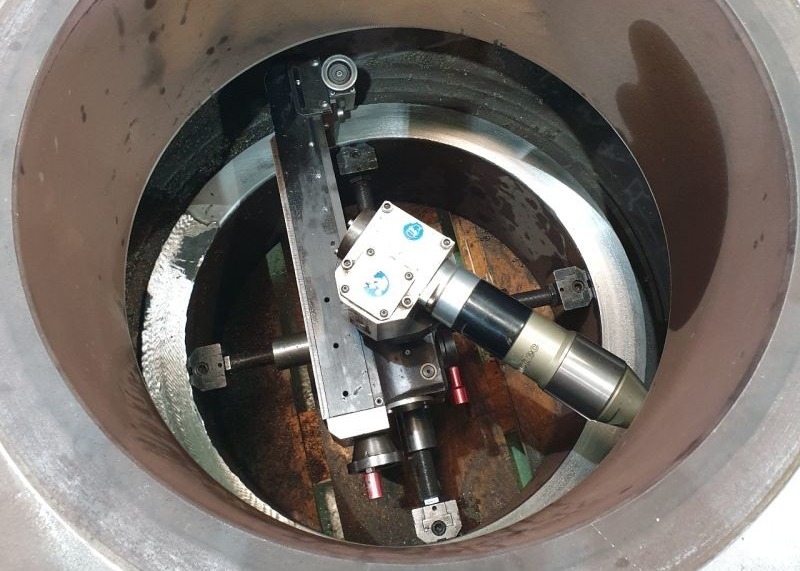

Inside Mounted Pneuamtic Flange Facing Machine RTJ Flange Facer Machine water line processing
machine performance
flange facing machine , this flange facing machine use interal mounted, expansion block support interal wall install machine, small raduis, suitable for narrow working space.this series machine are special design for flange repair. machine can repair flange facing, do water line , do seal groove machining, RTJ, RF, etc multifunction.this Machine also equip with Spirit level ruler and Dial indicator, high precision. after flange facing repair, the surface is very smoothly. this flange facing machine can do automatic feed and manual feed. vertical and horizontial both can feed. high efficency! high precision!
Machine function
Machine specification
| Model | Facing Range (O.D) | Mounting Range (I.D) | Tool Feed Stroke | Tool holder swivel angle | Rotation Speed |
| WFS-610 | 50-610mm | 50-508mm | 50mm | +-30° | 0-42r/min |
| WFS-1000 | 160-1000mm | 158-820mm | 102mm | +-30° | 0-33r/min |
| WFS-1650 | 500-1650mm | 500-1500mm | 102mm | +-30° | 0-22r/min |
| WFS-2000 | 690-2200mm | 690-2000mm | 102mm | +-360° | 0-20r/min |
| WFS-3000 | 1150-3000mm | 1120-2800mm | 102mm | +-360° | 3-12r/min |
Oder guide
Please provide more details about your requirement:
I will Recommend suitable machine to you.
