Product Details:
Payment & Shipping Terms:
|
| Facing Range: | 50-610mm | Machine Driven: | Pneumatic / Servo Motor |
|---|---|---|---|
| Function: | Facing , Seal Groove , RTJ Etc | Mounted Way: | Inside Mounted |
| Mounting Range: | 50-508mm | ||
| High Light: | Pneumatic RTJ Flange Facing Machine,Flange Facing Machine 33r/Min,Inside Mounted RTJ Flange Facing Machine |
||
Valve Flange Portable Miller water line process flange facer
machine introduce

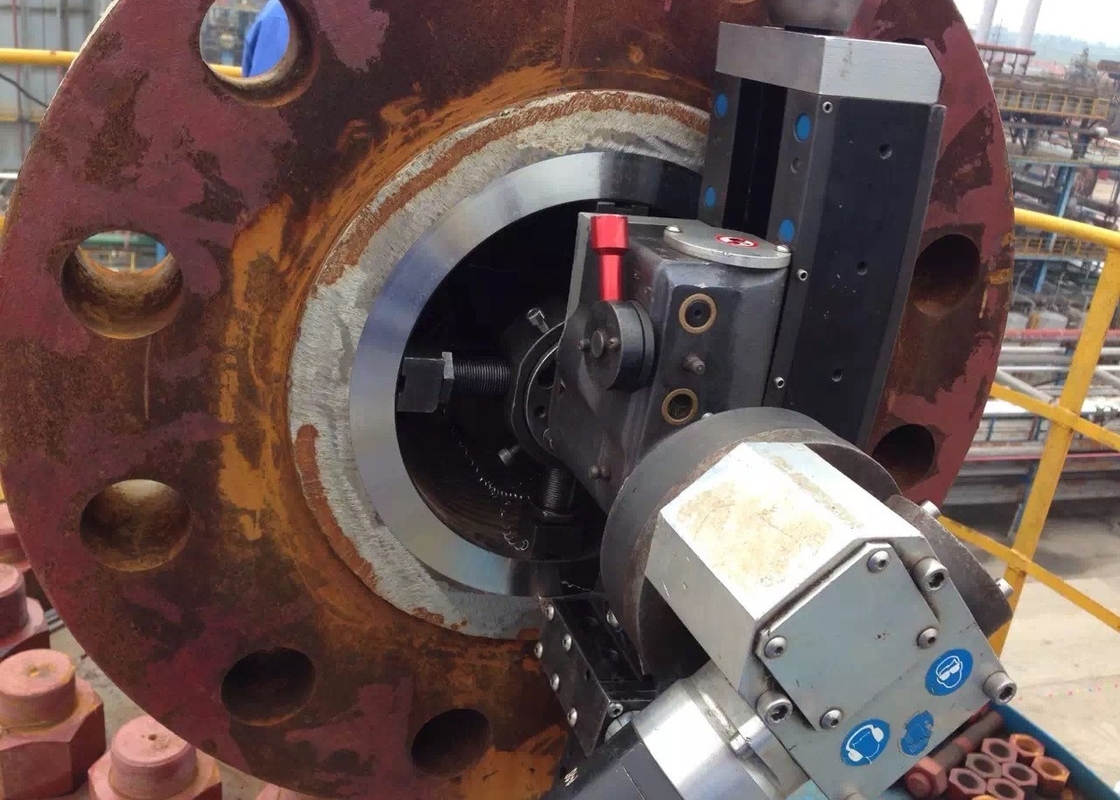

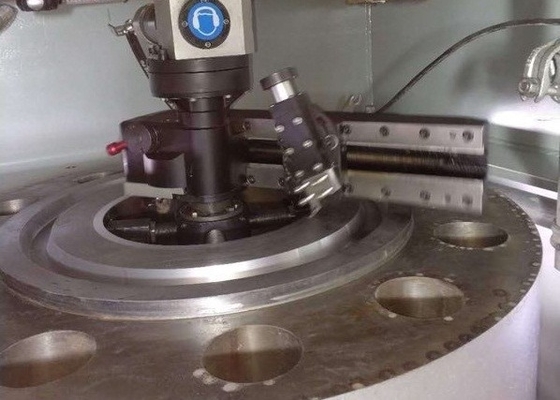

The flange end face processing machine is a portable milling machine type machine with high efficiency and fast speed. It can process flange surfaces, water lines, sealing groove processing, sealing surface processing, etc. The machine is installed internally, with a small working radius, suitable for any narrow space. The installation direction of the machine is not fixed, it can be horizontal, vertical, upside down, etc. The drive mode can also be selected, with pneumatic and servo motor drive. Pneumatics need an air compressor to provide air source.
Machine operation:
1. Install the expansion plate according to the size of the inner hole
2. Install the counterweight, and use a level for precise installation
3. Install the tool and use a dial indicator to calibrate the tool
4. Choose automatic feed or manual feed
Machine specification
| Model | Facing Range (O.D) | Mounting Range (I.D) | Tool Feed Stroke | Tool holder swivel angle | Rotation Speed |
| WFS-610 | 50-610mm | 50-508mm | 50mm | +-30° | 0-42r/min |
| WFS-1000 | 160-1000mm | 158-820mm | 102mm | +-30° | 0-33r/min |
| WFS-1650 | 500-1650mm | 500-1500mm | 102mm | +-30° | 0-22r/min |
| WFS-2000 | 690-2200mm | 690-2000mm | 102mm | +-360° | 0-20r/min |
| WFS-3000 | 1150-3000mm | 1120-2800mm | 102mm | +-360° | 3-12r/min |
