Product Details:
Payment & Shipping Terms:
|
| Facing Range: | 50-3000mm | Machine Driven: | Pneumatic / Servo Motor |
|---|---|---|---|
| Function: | Facing , Seal Groove , RTJ Etc | Mounted Way: | Inside Mounted |
| High Light: | Multifunction Flange Facing Machine,RTJ Flange Facer Machine,50mm Flange Facer Machine |
||
multifunction flange facing machine automatic flange facer
machine introduce

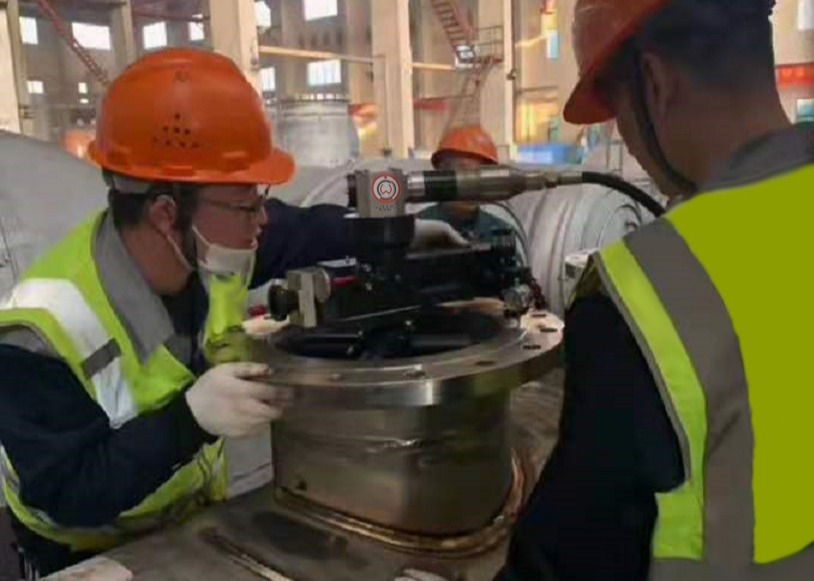

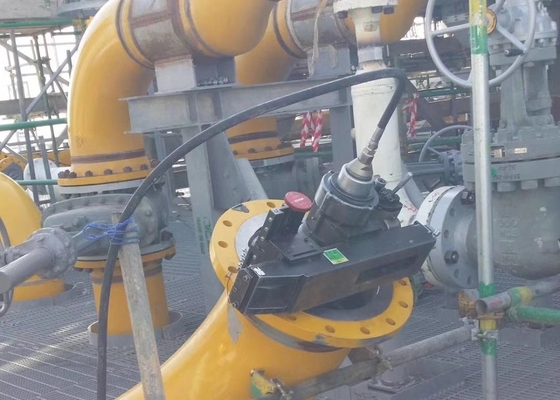

this series machine are special design for flange repair. machine can repair flange facing, do seal groove machining, RTJ, RF, etc multifunction.machine use interal mounted, expansion block support interal wall install machine, small raduis, suitable for narrow working space. Machine also equip with Spirit level ruler and Dial indicator, high precision. after flange facing repair, the surface is very smoothly. machine can do automatic feed and manual feed. vertical and horizontial both can feed. high efficency!
Machine specification
| Model | Facing Range (O.D) | Mounting Range (I.D) | Tool Feed Stroke | Tool holder swivel angle | Rotation Speed |
| WFS-610 | 50-610mm | 50-508mm | 50mm | +-30° | 0-42r/min |
| WFS-1000 | 160-1000mm | 158-820mm | 102mm | +-30° | 0-33r/min |
| WFS-1650 | 500-1650mm | 500-1500mm | 102mm | +-30° | 0-22r/min |
| WFS-2000 | 690-2200mm | 690-2000mm | 102mm | +-360° | 0-20r/min |
| WFS-3000 | 1150-3000mm | 1120-2800mm | 102mm | +-360° | 3-12r/min |
Machine function
Oder guide
Please provide more details about your requirement:
I will Recommend suitable machine to you.
Contact Person: Christina
Tel: +8613858817517
