Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Material: | Metal | Thickness: | 75mm |
|---|---|---|---|
| Diameter: | 150-330mm | Operation Type: | Electric |
| Model: | ISE-352-2 | Certification: | CE ISO |
| High Light: | Electric Operation Pipe Beveling Machine,Pipe Portable Beveling Machine,75mm Hand Chamfering Machine |
||

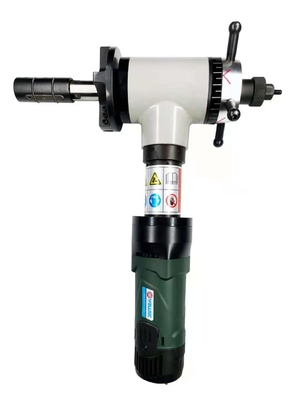

Electric Operation Pipe Cold Beveling Chamfering Machine ISE-352-2
Product Show
Machine Accessories
MAIN PERFORMANCE

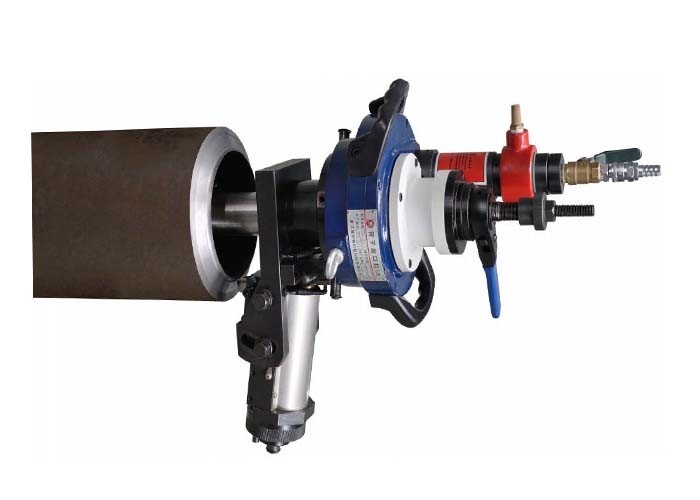

This series is ID-Mounted pipe beveling machine,with the following advantages:Easy operation, light weight and convenient to carry. The ID-Mounted pipe beveling machines use expanding mandrel to holding itself against on the internal surface of pipe via the open end of pipe. A draw nut is tightened,Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.It's can work with various material pipe,beveling angle as per your required.This series machine adopts air motor,main applied at the site of explosive and fireproof,power supply required:0.6-0.8MPa compressed air. With the advantage of:Fast Installation,self centered and working safely.
ID-MOUNTED ELECTRIC SERIES
|
Model
|
Working Range (ID-OD) | Wall Thickness | Rotation Speed | Air pressure | Air Consumption | |
| ISE-30 | Φ18-30 | 1/2''-3/4'' | ≤15 | 60r/min | 0.6MPa | 900 L/min |
| ISE--80 | Φ28-89 | 1''-3'' | ≤15 | 50r/min | 0.6MPa | 900 L/min |
| ISE--120 | Φ40-120 | 1 1/4''-4'' | ≤15 | 38r/min | 0.6MPa | 900 L/min |
| ISE--159 | Φ65-159 | 2 1/2''-5'' | ≤20 | 35r/min | 0.6MPa | 1000 L/min |
| ISE--252-1 | Φ80-273 | 3''-10'' | ≤20 | 16r/min | 0.6MPa | 1000 L/min |
| ISE--252-2 | Φ80-273 | ≤75 | 16r/min | 0.6MPa | 1000 L/min | |
| ISE--352-1 | Φ150-356 | 6''-14'' | ≤20 | 14r/min | 0.6MPa | 1200 L/min |
| ISE--352-2 | Φ150-356 | ≤75 | 14r/min | 0.6MPa | 1200 L/min | |
| ISE--426-1 | Φ273-426 | 10''-16'' | ≤20 | 12r/min | 0.7MPa | 1500 L/min |
| ISE--426-2 | Φ273-426 | ≤75 | 12r/min | 0.7MPa | 1500 L/min | |
| ISE--630-1 | Φ300-630 | 12''-24'' | ≤20 | 10r/min | 0.7MPa | 1500 L/min |
| ISE--630-2 | Φ300-630 | ≤75 | 10r/min | 0.7MPa | 1500 L/min | |
| ISE--850-1 | Φ490-850 | 24''-34'' | ≤20 | 9r/min | 0.7MPa | 1500 L/min |
| ISE--850-2 | Φ490-850 | ≤75 | 9r/min | 0.7MPa | 1500 L/min | |
On-Site Project
