High Efficiency Portable Plate Beveling Machine Stainless Steel Easy To Operate

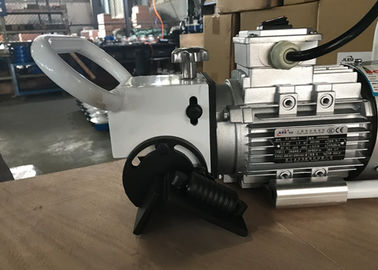

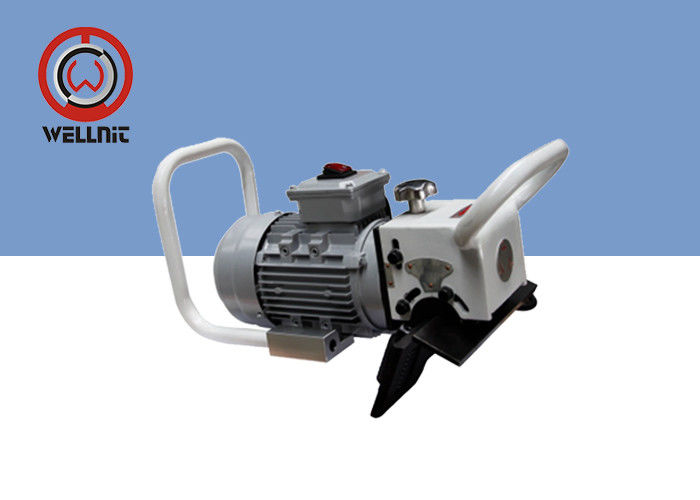

     PBM-15 groove machine is specially designed for plate groove and

chamfer, and it is a hand-propelled groove processing tool. It is suitable for

chamfering metal plate and groove processing before welding. Light weight

(compared with similar products), small vibration, easy to operate, safe

and reliable.

Operation and maintenance

1. Check whether the guide bearing is installed correctly according to the desired Angle of skew, whether

the fixed plate meets the thickness requirements of the workpiece, and whether the template meets the

requirements of cutting bevel. Turn the eccentric shaft with a hexagonal lever to see if the drive piece is

moving normally.

2. For large and heavy workpieces, the groove machine USES manual guidance, that is, the tool moves

and the workpiece does not move; For small workpieces, the beveling machine is fixed and the workpiece

is pushed forward by hand.

3. For the groove opening of convex and round workpieces, install the adjustable bracket with two small

wheels on the end face of the template, and the small wheels will roll along the surface of the workpiece;

For flat workpiece, one guide wheel can be installed on the end face of the template.

4. During processing, the tool axis should be basically parallel to the workpiece edge, and the auxiliary

handle on the guide support should be applied to make the tool press to the workpiece edge.

5. Regularly oil the lubrication points of guide supports and supports.

The knife must be sharp. The knife has two cutting edges and can be used on the other side when it is

blunt. When both sides are dull, remove and regrind. The total length of the regrinding is 10mm. If the

length of the cutter is 95mm, it cannot be used.

7. When the groove machine is used for 200 ~ 300h, the gear box must be unpacked and refueled, and

the motor shall be repaired.
