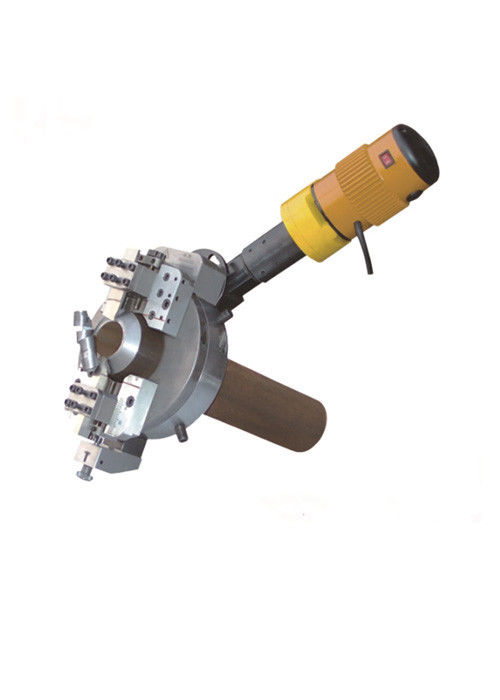

Split Frame Electric AluminumClamshell Pipe Cutter 42 R/min Rotation Speed

Split Frame Electric AluminumClamshell Pipe Cutter 42 R/min Rotation Speed

     The series machine is ideal for all types of pipe cutting, beveling and end preparation.

The split frame design allows the machine to split in half at the frame and mount around

the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line

cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end

preparation on open ended pipe, Ranging from 3/4” to 56 inches O.D.(DN20-1400), on most wall

thicknesses and material.

Adopt high strength & precision split frame ring structure,apply for cut and bevel work for different

pipe,especially for batch working of cutting and beveling,get the high efficiency.

Technical merits:

1:Lightweight and easily transportable machine (only 23 kg/50.7 lbs or 26 kg/57.3 lbs) to provide flexibility

for on-site applications

2:Deformation-free clamping of thin-walled tubes

3:For cutting and beveling of tubes and elbows

4:Square, burr-free and deformation-free pipe end

5:Cold cutting process prevents corrosion

6:Orbital cutting process saves time

7:Multipoint clamping system of tubes

8:Fast adjustment of tube dimensions

(1) Easy to mount quickly,the swelling mechanism inserted into pipe inner,can automatically locate and

center itself.

(2) The machine can not only process the U,V shape of pipe beveling,and used fie carbon steels,stainless

steels and alloyed steel pipes,but also can treat the welded convex flange and plain flange.

(3) Cold cutting process will not influence the quality of the material of the pipe.

Various of driven options: Pneumatic,Electric or Hydraulic.

1. Self-centering,no need adjust the concentricity & perpendicularity manually Four clamp install

synchronously and high effect.

2. New clamping type,save the step of replace expending block.

3. Adopt new synchronous feeding mechanism, feeding uniformity,tool bits has longer working life.

4. Easy set up ,operation and maintain.

5. Cutting & beveling finished at same time,high working effective.

6. Cold working,no spark,won’t make the material affected.

7. Perfect working precision,no burrs

8. Well-adapted,install split,you can make the speed adjust depend on the working conditions.

Main Features:
