Product Details:
Payment & Shipping Terms:
|
| Voltage: | 220V | Rated Power: | 1.5-2KW |
|---|---|---|---|
| Speed: | 20 R/min | Warranty: | 1 Year |
| Working Range: | 2-5 Inches | Cutting Material: | Carbon,stainless,alloy |
| Highlight: | pipe cutter and beveler,clamshell pipe cutting machine |
||

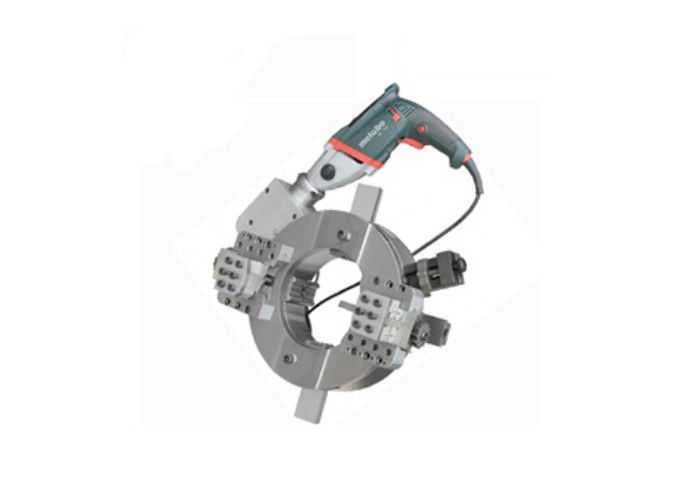

High Efficient Metabo Pipe Cutting And Beveling Machine 220V 1.5KW - 2KW
Production Description:
The series machine is ideal for all types of pipe cutting, beveling and end preparation.
The split frame design allows the machine to split in half at the frame and mount around
the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line
cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end
preparation on open ended pipe, Ranging from 3/4” to 56 inches O.D.(DN20-1400), on most wall
thicknesses and material.
They are widely used in the fileds of repairing and installing the pipe on site,such as the industry of the
petroleum,chemical, natural gas and so on.
Main Features:
1. Cold Cutting and Beveling improves safety.
2. Cutting and Beveling simultaneous.
3. Split Frame: easy mounted on pipeline.
4. Tools feed automatically.
5. Fast, Precision, On-site Beveling.
6. Minimal Axial and Radial clearance.
7. Light weight and compact design.
8. Easy set-up & Operation.
Question 1: How to choose a suitable model?
RE: Before choose the model,we need to know more details about the pipe,such as the I.D,O.D,wall
thickness,the material of the pipe and the enviroment of the site and the requirement of the end face.
Then it will be more convient for all of us to make an immediately decision .Thanks!
Question 2: Do you have another choice about the driven?
RE: Of course,we have widely variety of choices for you, such as the electric,pneumatic,hydraulic and NC.
Queation 3: About the type of the beveling?
RE: The normally type is the v and U,if you have any special requirement, please let us know it, i believe
that our engineer can provide a solution for you.
The split frame clamshells use extremely low eight aluminum boy, easily setup in both on-site and
workshop
1. This pipe cutting machine is easy to use, one operator can mount and dismount the machine
on pipe within minutes.
2. This pipe cutting and beveling machine has excellent stability and enhanced gear heat treatment to
ensure expanded machine life.
3. Heavy Duty, cutting and beveling simultaneously.
4. Suitable for cut all kind of materials, from cast iron, high strength alloy, to stainless steel.
5. Base plate can be easily installed and uninstalled, for workshop and field application.
6. Three power sources available for different application: Hydraulic Station, Pneumatic, and Electric.
Technical Specifications:
| Model | working range(ID-OD) | wall thickness | rotation speed |
| OCM-159 |
Φ50-159(2”-5”) |
≤30mm |
20r/min |
