Product Details:
Payment & Shipping Terms:
|
| Working Range (I.D-O.D): | 2/3"-34" | Power Supply: | 0.6-0.8Mpa |
|---|---|---|---|
| Air Consumption: | 650-1000L/Min | Wall Thickness: | Less Than 75mm |
| High Light: | pipe cutter and beveler,pipe bevel cutter |
||
Pneumatic Lightweight stainless steel pipe cold groove machine no burr
The main of performance
This series of products is specially designed for metal pipe.(Carbon steel,Stainless Steel,Aluminum Alloy etc)It is internal mounted and it has a small working radius, which is suitable for a narrow working situation.The machine is manual operated and the machine feed by rotating the ratchet handle. The operation is simple and the processing speed is fastly. The bevel surface after processing is smoothly. Suitable for heat exchangers, pipes, boilers, etc.
The function of Product
The specification of product
| Driven | Model | Working Range(I.D-O.D) | Wall Thickness | Rotation Speed | |
| 30 | 18-30 | 2/3"-3/4" | <=15mm | 50r/min | |
| 80 | 28-89 | 1"-3" | <=15mm | 55r/min | |
| ISE | 120 | 40-120 | 11/4"-4" | <=15mm | 30r/min |
| Electric | 159 | 65-159 | 21/2"-5" | <=20mm | 35r/min |
| 252-1 | 80-273 | 3"-10" | <=20mm | 16r/min | |
| 352-1 | 150-356 | 6"-14" | <=20mm | 14r/min | |
| ISP | 426-1 | 273-426 | 10"-16" | <=20mm | 12r/min |
| Pneumatic | 630-1 | 300-630 | 12"-24" | <=20mm | 10r/min |
| 850-1 | 600-850 | 24"-34" | <=20mm | 9r/min | |
| 252-2 | 80-273 | 3"-10" | <=75mm | 16r/min | |
| ISM | 352-2 | 150-356 | 6"-14" | <=75mm | 14r/min |
| Metabo | 426-2 | 273-426 | 10"-16" | <=75mm | 12r/min |
| 630-2 | 300-630 | 12"-24" | <=75mm | 10r/min | |
| 850-2 | 600-850 | 24"-34" | <=75mm | 9r/min | |
| Note:Non-Standard Machines are available according to customer's requirement. | |||||
ISE mean that driven is Electric
ISP mean that driven is Pneumatic
Pnuematic driven need meet air requirements.
Power supply:0.6-0.8MPa
Air consumption:650-1000L/Min
ISM mean that driven is Metabo(Germany import with overload protect)
Different Model that Working Range is different.
The Opeation general steps as follows:
1.Measure pipe size(I.D),choose suitable block and install.
2.put machine in the pipe,fixed the machine
3.install the tools
4.start to process

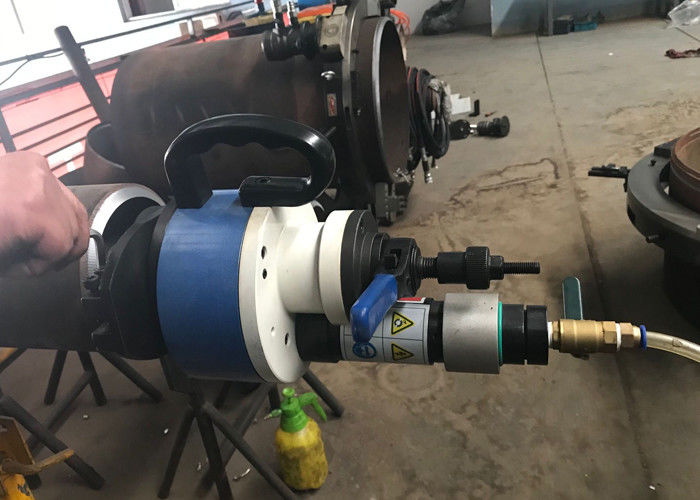

In the picture, the machine is pipe beveling machine Type II ,the max wall thickness can up to 75mm.
you can use one degree beveling tool , then process different degree bevel. (0-45degree)
We are manufacturers, we have professional engineers,
you provide processing requirements and drawings,
we will customize products for you to meet your needs.
We also can video with you,let our engineers teach you how to use machine.
Before place order ,please provide more details about your pipe,
We will recommend suitable machine to you.
1.PIPE SIZE (I.D):
2.PIPE THICKNESS:
3.PIPE MATERIAL:
4.DRIVEN:
