Product Details:
Payment & Shipping Terms:
|
| Working Range (O.D): | 14-114mm | Power Supply: | 1300W |
|---|---|---|---|
| Wall Thickness: | Less Than 12mm | Driven: | Metabo |
| Rotation Speed: | 30-120 R/min | ||
| Highlight: | pipe cutter and beveler,pipe bevel cutter |
||
Metabo Motor Pipe cutting and beveller groove machine automatic feed
The function of Product
1. Self-Centering,no need adjust work of concentricity & perpendicularity.
2. Compact structure and good appearance,high strength aluminum body.
3. Adopt new synchronous feeding mechanism,feeding uniformity,tool bits has longer working life.
4. Easy set-up,operation and maintain.
5. Cutting and Beveling finished at same time,high working effective.
6. Cold working,no spark,won't make the material affected.
7. Perfect working precision,no burrs.
8. Well-adapted,you can make the speed adjust depend on the working conditions.
The specification of product
| Model | Working Range(O.D) | Wall Thickness | Rotation Speed | Net Weight |
| SCB-63 | 14-63mm | <=12mm | 30-120r/min | 13KG |
| SCB-114 | 63-114mm | <=12mm | 30-120r/min | 16KG |
| Note:Non-Standard Machines are available according to customer's requirement. | ||||
SCB Type Machine with Metabo Motor.
The Motor have overload protect.
Different Model that Working Range is different.
The Opeation general steps as follows:
1.put machine in the pipe,fixed the machine
2.install the tools
3.start to process
We are manufacturers, we have professional engineers,
you provide processing requirements and drawings,
we will customize products for you to meet your needs.

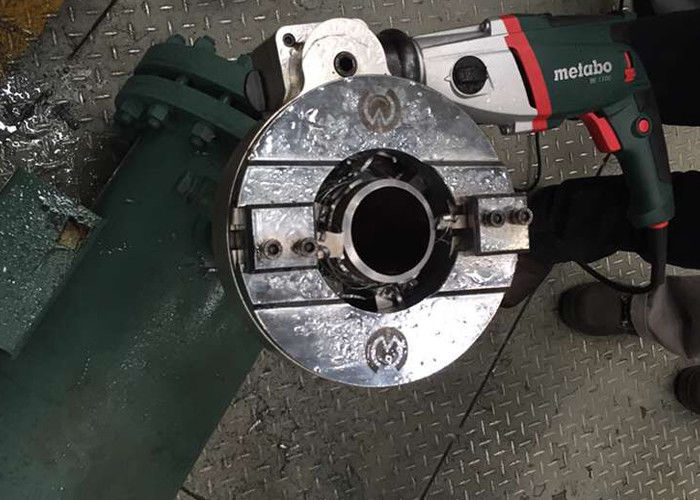

In the picture , this product is customization.
If you pipe is too thin, the pipe maybe will be deform.we will make wall jacket for you.
We also can video with you,let our engineers teach you how to use machine.
Before place order ,please provide more details about your pipe,
We will recommend suitable machine to you.
1.PIPE SIZE (O.D):
2.PIPE THICKNESS:
3.PIPE MATERIAL:
4.DRIVEN:
