2kw Electric 42r/Min Pipe Cutting And Beveling Machine

Servo Motor Driven Pipe Cutting Beveling Machine Electric High Precision

Product Performance

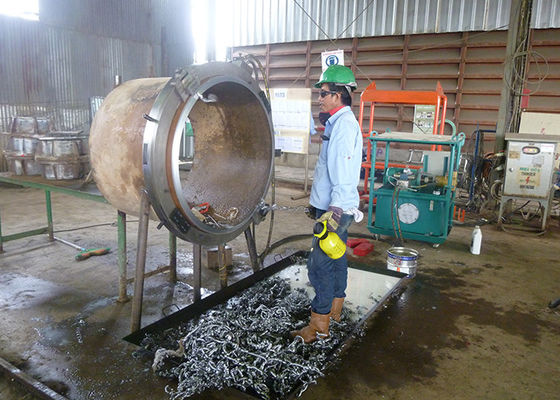

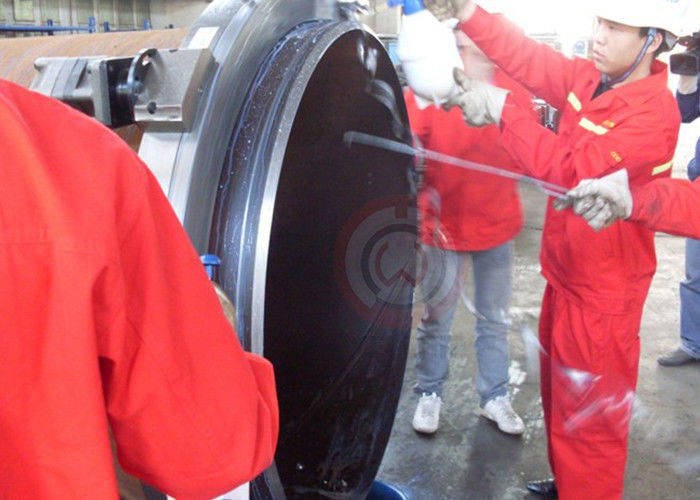

The series machine is OD mounted machine, According to pipe outside diameter size to choose suitable model. split frame type make machine can install pipe any position. Compact design make machine portable , light weight. The machine can only cutting , only beveling , can cutting and beveling at same time. More efficiency. The machine working direction can not be limited. Vertical, horizontal , reverse etc.


Electric Servo Driven

Servo Motor Specification:

Wellnit Customized Motor

220V / 380vV 50/60Hz 2.3-2.6KW

made in china

Advantage

Stepless speed regulation

Electronic Display

Tool Holder Choose

Name	Picture
Standard Tool Slide   achieve cut/bevel up to 30mm
Heavy wall Tool Slide   achieve cut/bevel up to 70mm
Bridge Tool Slide   achieve cut/bevel up to 100mm in multi passes, also can process flange facing
Tracking Tool Slide   O.D tracking slide compensate for out of round pipe travel along the O.D makes the bevel face balanced usually apply on large size diameter pipe

Bevel Type


Specification

Order Guide

• pipe size (O.D) :
• pipe thickenss :
• pipe material :

I will recommend suitable machine for you!
