42rpm 50mm Portable Flange Facer Machine

Portable Flange Facers for resurfacing pipe and tube flanges flange facing machine

WFP-610 portable flange facer is a reliable product, portable flange facing macine are easy to use for resurfacing pipe and tube falnges, with no special training requirement , it's good to learn and control.

Main features:

• Compact structure ,Light weight ,easy to carry out.
• Have scale of feed handwheel ,improve feed accuracy
• Automatic feeding in the axial direction and the radial direction,high efficiency
• Horizontal, vertical, inverted, tilt etc,any direction both can processed.
• Can process flat face, water line, Continuous groove,RTJ groove etc
• Driven: Pneumatic,Hydraulic,CNC

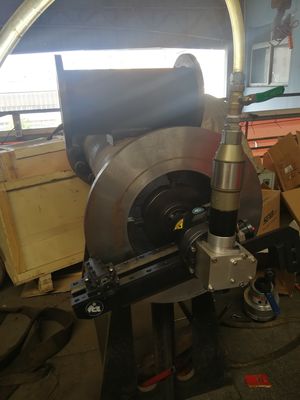

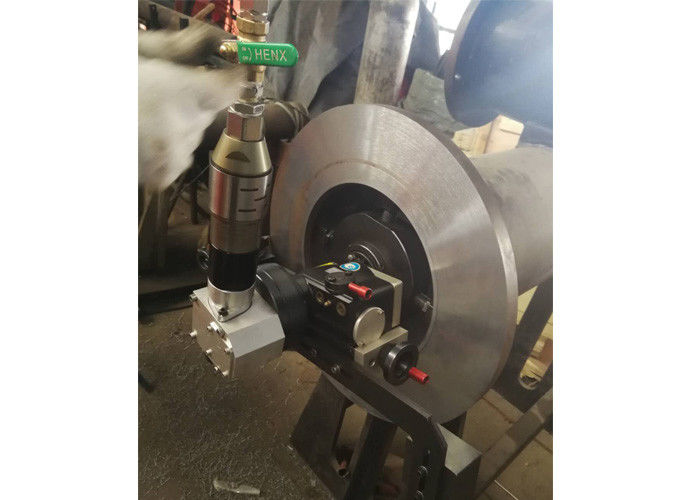

Machine picture:

WFP-610  machine  is inside mounted in pipe or flange, and can process inner hole of the flange, the outer circle and various sealing surfaces (RF, RTJ, etc.).

Portable flange facing machine, it's powerful and versatile tools which makes it cut through the toughest material and work on a wide range of face diameter.On site flange facer mounted inside and outside the piep for stable and accurate machining.Modular design of the whole machine, easy to assemble and disassemble, equipped with preloaded braking system, intermittent cutting, unlimited working direction, high productivity and low noise, widely used in cast iron, alloy structural steel, stainless steel and other metal materials.It gives machine shop accuracy , combined with ease of handing and portablity in the flange range .

Spur gears engage directly on the drive ring, keep power requirements and losses to a minimum and allowing maximum torque at the cutting tool . When the machine is used in the vertical plane , balancing is greatly reduced.

WFP-610 portable flange facing machine applications:

Flange facing machine application for Oil, Gas and Chemical ,Power Generation ,Heavy Equipment ,Ship building & repair

Typical applications:

• Piping system flanges

• Valve flanges and bonnet flanges

• Heat exchanger flanges

• Vessel flanges

• Flange faces on piping systems

• Pump housing flanges

• Weld preps

• Tube sheet bundles.

• Bearing mounting bases

• Final drive hubs

• Bull gear faces

• Manufacturing of mining equipment

• Slew rings

• Bearing mounting bases

• Crane pedestal flange.

This machine advantages:

Quick and Easy Setup & Removal

• Separate mounting chuck.

• All centering and leveling is done on the chuck.

Lightweight

• Body of machine weighs only 99 lbs (45 kg).

• Smallest mounting chuck weighs about 5 lbs (2.2 kg).

Safe and Quiet Operation

• Stationary feed rate selector.

• Machine is controlled without touching any moving parts.

• Exhaust air is routed through body of machine for increased muffling.

Simplified Operation

• Single selector switch for bidirectional radial feed or vertical downfeed.

• One wrench size for clamping jaws and body draw bolt.

Cuts Chamfers and Grooves

• Compound tool head and downfeed for cutting angles and grooves.

WFP-610 can be used in horizontally,verically or overhead planes.

Packing pictures:

package :

size :

77 x 51 x 55cm -

Weight:

62kg+18kgs wooden box in total (Aluminum box+wooden box)

Easy to carry and reliable quality on site shipping.
