Stainless Steel 2KW 8r/Min Pipe Cutter And Beveler

stainless steel Pipe Cutting Beveling Machine High Precision

                                                                                                                                                              Website : http://www.wellnit.com

Product Performance

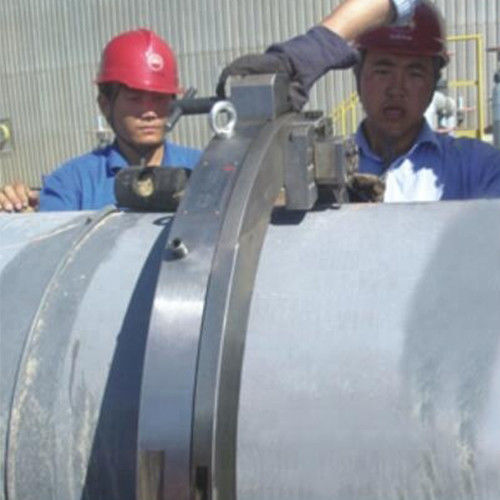

The series machine is ideal for all types of pipe cutting ,beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in line pipe or fitting for strong , stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 1 to 56 inches O.D(DN 25 – 1430mm), On most wall thickness and material.

Machine Body

Steel Body

Both Rotary ring and Stationary ring made by steel.

This is the traditional china material. A little heavier for on site machine. But Rigidity is very good, idea for heavy walled pipe.

Aluminum Alloy Body

This is our new machine,stationary ring made by aluminum.

Steel where strength is needed,aluminum where strength is less critical than weight.

Lightweight makes more convenient for operator.

Tool Holder Choose

Name	Picture
Standard Tool Slide   achieve cut/bevel up to 30mm
Heavy wall Tool Slide   achieve cut/bevel up to 70mm
Bridge Tool Slide   achieve cut/bevel up to 100mm in multi passes, also can process flange facing
Tracking Tool Slide   O.D tracking slide compensate for out of round pipe travel along the O.D makes the bevel face balanced usually apply on large size diameter pipe

Bevel Type


Specification

Order Guide

• pipe size (O.D) :
• pipe thickenss :
• pipe material :

I will recommend suitable machine for you!
