Seal Groove Portable Id Flange Facer Machine

ID mounted light duty portable flange facing machine

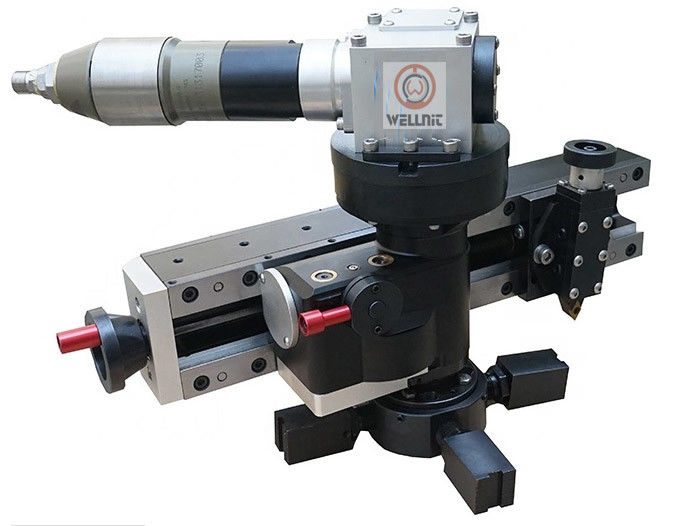

WFP-610 machine is inside mounted in pipe or flange, and can process inner hole of the flange, the outer circle and various sealing surfaces (RF, RTJ, etc.).Portable flange facing machine, it's powerful and versatile tools which makes it cut through the toughest material and work on a wide range of face diameter.



WFP portable flange facer is a reliable product, portable flange facing macine are easy to use for resurfacing pipe and tube falnges, with no special training requirement , it's good to learn and control.Portable flange facing machine, it's powerful and versatile tools which makes it cut through the toughest material and work on a wide range of face diameter.



It  is a portable and efficient product. The machine is inside mounted in pipe or flange, and can process inner hole of the flange, the outer circle and various sealing surfaces (RF, RTJ, etc.). Modular design of the whole machine, easy to assemble and disassemble, equipped with preloaded braking system, intermittent cutting, unlimited working direction, high productivity and low noise, widely used in cast iron, alloy structural steel, stainless steel and other metal materials. Flange sealing surface repair, flange surface repair and etc.



This machine have two type operation types:



Machine tool blades:

Technical Parameters:





Note:Non-Standard machine are available according to customer’s requirement.

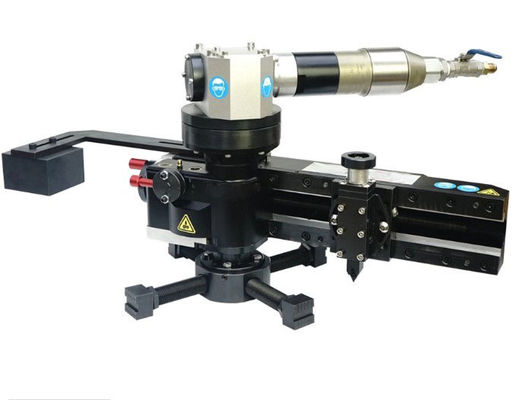

Here is the drawing of WFP-610 portable flange facing machine:





 Process surpface Show:







Machine Features:

• Compact structure ,Light weight ,easy to carry out.
• Have scale of feed handwheel ,improve feed accuracy
• Automatic feeding in the axial direction and the radial direction,high efficiency
• Horizontal, vertical, inverted, tilt etc,any direction both can processed.
• Can process flat face, water line, Continuous groove,RTJ groove etc
• Driven: Pneumatic,Hydraulic,CNC





Typical applications:



Flange facing machine application for Oil, Gas and Chemical ,Power Generation ,Heavy Equipment ,Ship building & repair

• Piping system flanges

• Valve flanges and bonnet flanges

• Heat exchanger flanges

• Vessel flanges

• Flange faces on piping systems

• Pump housing flanges

• Weld preps

• Tube sheet bundles.

• Bearing mounting bases

• Final drive hubs

• Bull gear faces

• Manufacturing of mining equipment

• Slew rings

• Bearing mounting bases

• Crane pedestal flange.



Flange facing machine parameter:

Facing diameter	150-3000mm
ID Mount diameter	145-3000mm
Motor power	Pneumatic
Tool post	102mm
Speed	0-33rpm





Main advantages:



• Exceedingly versatile

• Highly portable

• Latest linear technology

• High efficiency

• Low noise level 2.0hp drive

• Storage/shipping box

• CE certificate





Machine on site:











Machine advantages:



Quick and Easy Setup & Removal

• Separate mounting chuck.

• All centering and leveling is done on the chuck.



Lightweight

• Body of machine weighs only 99 lbs (45 kg).

• Smallest mounting chuck weighs about 5 lbs (2.2 kg).



Safe and Quiet Operation

• Stationary feed rate selector.

• Machine is controlled without touching any moving parts.

• Exhaust air is routed through body of machine for increased muffling.



Simplified Operation

• Single selector switch for bidirectional radial feed or vertical downfeed.

• One wrench size for clamping jaws and body draw bolt.



Cuts Chamfers and Grooves

• Compound tool head and downfeed for cutting angles and grooves.



WFP-610 can be used in horizontally,verically or overhead planes.







Packing pictures:







package :

size :

77 x 51 x 55cm -

Weight:

62kg+18kgs wooden box in total (Aluminum box+wooden box)

Easy to carry and reliable quality on site shipping.
