Product Details:
Payment & Shipping Terms:
|
| Working Range(o.d): | 457-610(18"-24") | Wall Thickness: | <110mm |
|---|---|---|---|
| Driven: | Electic | Power: | 220V/380V/50HZ |
| Material: | Tainless Steel, Carbon Steel, Aluminium Alloy | ||
| High Light: | Stainless Pipe Cutting Beveling Machine,Pneumatic Pipe Bevel Cutter,42r/Min Pipe Bevel Cutter |
||

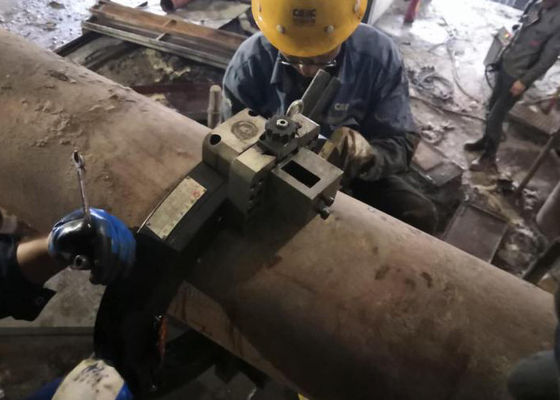

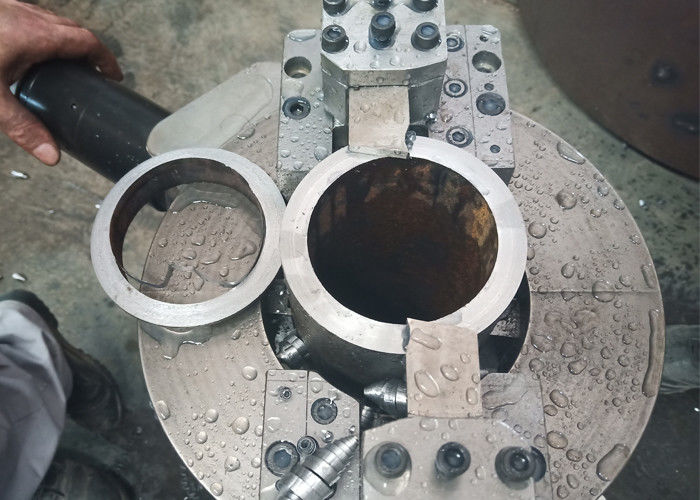

Cutting and beveling for carbon and stainless Pipe tube Machine pneumatic
Cutting and beveling for carbon and stainless Pipe tube Machine
The product of characteristic:
| model | 89 | 168 | 230 | 275 | 305 | 325 | 377 |
| working range (O.D) | 25-89 | 50-168 | 80-230 | 125-275 | 150-305 | 168-325 | 219-377 |
| 1"-3" | 2"-6" | 3"-8" | 5"-10" | 6"-10" | 6"-12" | 8"-14" | |
| rotation speed(r/min) | 42 | 18 | 15 | 14 | 13 | 13 | 12 |
| model | 426 | 457 | 508 | 560 | 610 | 630 | 660 |
| working range (O.D) | 273-426 | 300-457 | 355-508 | 400-560 | 457-610 | 480-630 | 508-660 |
| 10"-16" | 12"-18" | 14"-20" | 16"-22" | 18"-24" | 20"-24" | 20"-26" | |
| rotation speed(r/min) | 12 | 12 | 12 | 12 | 11 | 11 | 11 |
| model | 715 | 762 | 830 | 914 | 1066 | 1230 | 1430 |
| working range (O.D) | 560-715 | 600-762 | 660-830 | 762-914 | 914-1066 | 1066-1230 | 1230-1430 |
| 22"-28" | 24"-30" | 26"-32" | 30"-36" | 36"-42" | 42"-48" | 48"-56" | |
| rotation speed(r/min) | 11 | 11 | 10 | 10 | 10 | 10 | 8 |
| Driven can choose:Electic,Pneumatic,Hydraulic,Servo Motor | |||||||
| Wall thickness: <30mm standard Tool; <110mm Heavy Tool | |||||||
