Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum Body | Core Components:: | Engine, Bearing, Gearbox, Motor, Pressure Vessel |
|---|---|---|---|
| Wall Thickness:: | ≤15mm | Frequency:: | 50/60HZ |
| Working Range:: | 3"-10" | Rotation Speed:: | 35r/min |
| Voltage:: | 220-240V | Motor Color:: | Green |
| Operation:: | Manual | Driven:: | Electric Or Pneumatic |

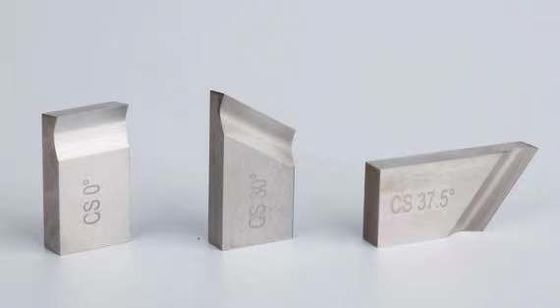

| Insert Material:: | M42 | Certification:: | ISO/CE |
| Warranty:: | 1 Year | Power (kW):: | 1.2 |
| Weight (KG):: | 35 KG | Size: | 780*355*365mm |
| High Light: | Copper Tube Chamfering Machine,Cold Beveling Tube Chamfering Machine,Tube Chamfering Machine 35r/Min |
||
Production Description
This series is Stainless Steel Copper Tube Chamfering Machine with the following advantages:
Technical Parameter
| Model | Working Range(ID-OD) | Wall Thickness(mm) | Rotation Speed(r/min) | ||
| ISE-30 | ISM-30 | Φ18-30 | 1/2"-3/4" | ≤15 | 50 |
| ISE-80 | ISM-80 | Φ28-89 | 1"-3" | ≤15 | 55 |
| ISE-120 | ISM-120 | Φ40-120 | 11/4"-4" | ≤15 | 30 |
| ISE-159 | ISM-159 | Φ65-159 | 21/2"-5' | ≤20 | 35 |
| ISE-252-1 | ISM-252-1 | Φ80-273 | 3"-10" | ≤20 | 16 |
| ISE-252-2 | ISM-252-2 | Φ80-273 | ≤75 | 16 | |
| ISE-352-1 | ISM-352-1 | Φ150-356 | 6"-14" | ≤20 | 14 |
| ISE-352-2 | ISM-352-2 | Φ150-356 | ≤75 | 14 | |
| ISE-426-1 | ISE-426-1 | Φ273-426 | 10"-16" | ≤20 | 12 |
| ISE-426-2 | ISM-426-2 | Φ273-426 | ≤75 | 12 | |
| ISE-630-1 | ISM-630-1 | Φ300-630 | 12"-24" | ≤20 | 10 |
| ISE-630-2 | ISM-630-2 | Φ300-630 | ≤75 | 10 | |
| ISE-850-1 | ISM-850-1 | Φ490-850 | 24"-34" | ≤20 | 9 |
| ISE-850-2 | ISM-850-2 | Φ490-850 | ≤75 | 9 |
|

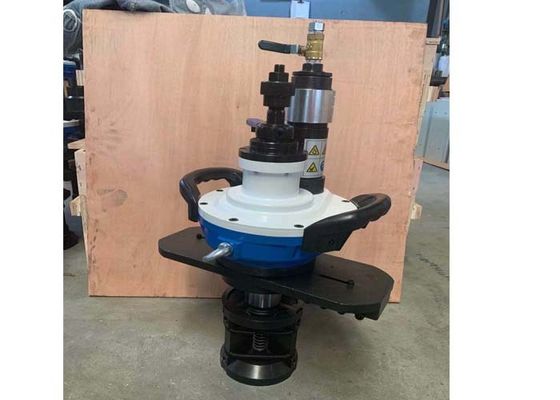

Product Show
Electric Driven Pneumatic Driven
Order Guide
Before you place order to us, please let us know the following information:
Choose the right Model
Confirm your electric power supply ( Voltage, frequency and phase)
Confirm the beveling angel required
Confirm the welding joint required (U, V, Double V or Compound preparation)
Advise your pipe material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed
If the pipe wall thickness more than 30mm, inform us in advance (Important)
Machine On-Site Order Guide
