Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Product Category: | ISE/ISP-30/80/120/159/252/352/426/630/850 | Processing Pipe Diameter: | 18-820mm |
|---|---|---|---|
| Drive Way: | Electric, Pneumatic | Cutter Speed: | 9-55r/min |
| Tool Material: | M2; M42 | Warranty Period: | 1 Year |
| High Light: | Multifunction Handheld Chamfering Machine,Electric SS Beveling Chamfering Machine,Dia 820mm Pipe Beveling Machine |
||
Features
1. The machine is compact in structure, light in weight and easy to carry.
2. Small working radius, suitable for narrow working space.
3. Completely cold processed, no sparks, and will not affect the material.
4. Automatically locate the center of the pipe with high accuracy.
5. Manual feed, simple operation and high efficiency.
6. Groove form: V-shaped, U-shaped, J-shaped, internal bevel, etc.
7. The speed of the motor can be adjusted according to different materials of the pipe.
8. It can process pipes made of carbon steel, stainless steel, alloy steel and other metal materials.
Technical Parameters

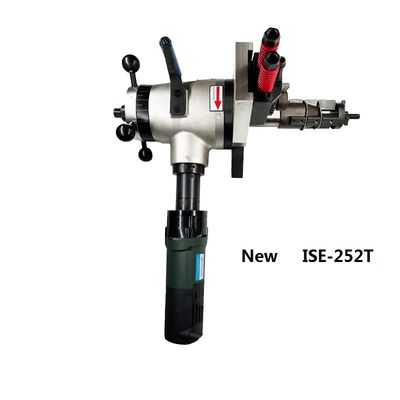

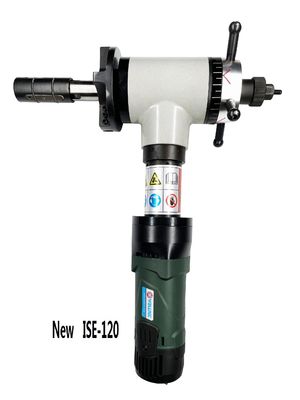

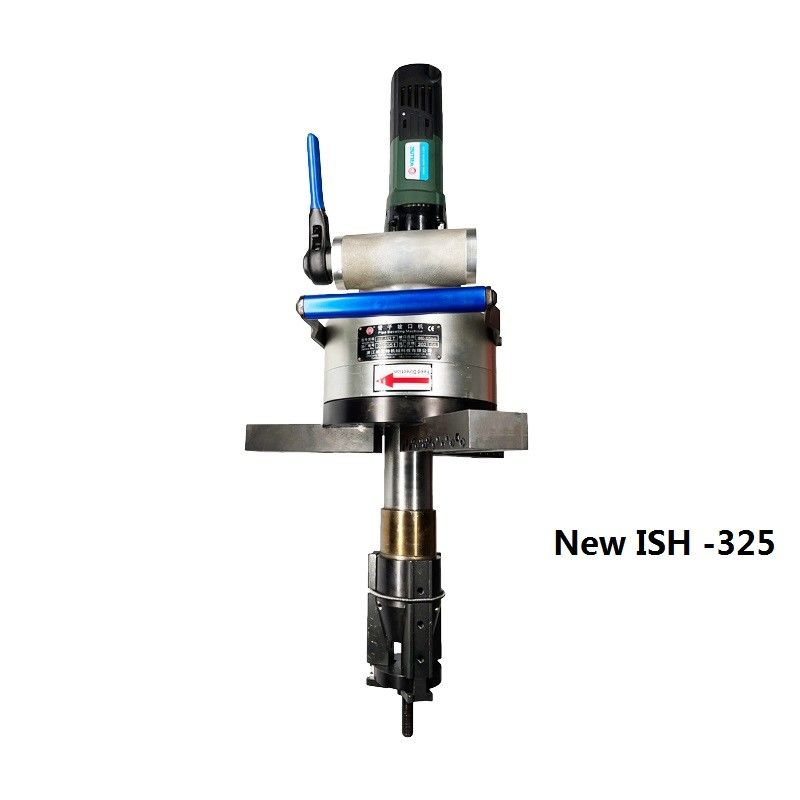

| specification | ISE-30 | ISE-80 | ISE-120 | ISE-159 | ISE-252T | ISE-252-1 | ISH-325 | ISE-352-1 | ISE-426-1 | ISE-630-1 | ISE-850-1 |
| Processing tube inner diameter | 18-28mm | 28-76mm | 40-120mm | 65-159mm | 65-245mm | 80-240mm | 80-305mm | 150-330mm | 250-426mm | 300-600mm | 600-820mm |
| Cutting bevel wall thickness | ≤15 | ≤15 | ≤15 | ≤20 | ≤20 | ≤20 | ≤20 | ≤20 | ≤20 | ≤20 | ≤20 |
| Cutter speed | 50r/min | 55r/min | 30r/min | 35r/min | 16r/min | 16r/min | 16r/min | 14r/min |
12r/min |
10r/min | 9r/min |
|
specification |
ISE-252-2 | ISE-352-2 | ISE-426-2 | ISE-630-2 | ISE-850-2 |
| Processing tube inner diameter | 80-240mm | 150-330mm | 250-426mm | 300-600mm | 600-820mm |
| Cutting bevel wall thickness | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 |
| Cutter speed | 16r/min | 14r/min | 12r/min | 10r/min | 9r/min |

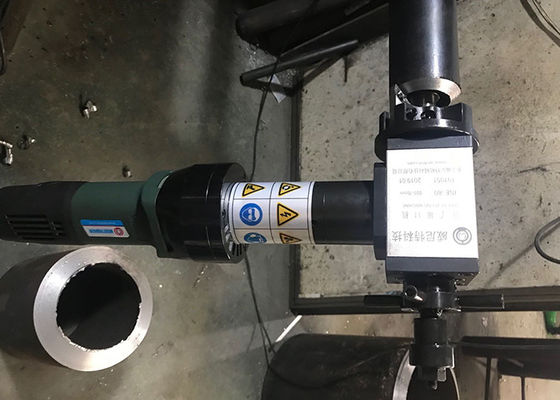

Field case
Applied material
Product packaging
